E-BIKE TUNING KIT Levociraptor for BROSE Specialized Creo, Vado and Levo SL 2020-2021 ebike chip Levociraptor
Levociraptor

E-BIKE TUNING KIT Levociraptor for BROSE Specialized Creo, Vado and Levo SL 2020-2021

£129.99 Save £-129.99
19 in stock


"Absolutely brilliant! took the bike out today and it’s like a motocross bike 💯" - George

Product Features

Compatible with:
- Brose Specialized LEVO SL, VADO SL and CREO SL 2020-2021 eBikes with the MAHLE motor.
Removes speed limits up to 54 mph (86km/h).
- From now on you will be able to ride even at a speed over 25mph (40km/h), 30mph (50km/h) and even more than 37mph (60 km/h)  - as much as you can pedal!

Tuning kit is always active after installation.
- The Levociraptor connects to your Specialized Levo, Vado or Creo SL via the TCU and speed calibration within BLEvo app allows you to retain accuracy of speed and distance.

Easy Installation.
-The Levociraptor connects to your speed sensor cable. It is really simple to install it - just plug and play.

Will Levociraptor Brose Specialized for CREO, VADO and LEVO SL work with my eBike?

Compatible with all Brose Specialized CREO, VADO and LEVO SL 2020-2021 eBikes with the MAHLE motor. This tuning kit works with higher speed versions as well!
If you have Brose Specialized Levo or Kenevo  eBike 2019-2021, you will need this tuning kit.

Assembly

We have prepared detailed instructions, which you will receive together with the Tuning kit to make installation easy for you. You just need to remove the cover from the motor and attach the connectors. You will need a basic toolkit, some bikes may require a crank puller.
If you have any troubles with installation or disassembly, do not hesitate to contact us.
If You are planning to install Levociraptor on brand-new eBike, make sure you ride it for at least 0.6miles (1km) before the Tuning Kit is activated.

Product details

  • Size without cables - 1.18 x 0.78 x 0.19 in (3 x 2 x 0.5 cm)
  • Operating voltage - 5-15 V
  • Max. power consumption - 100 mA / 1.5 W
  • Weight - Approx. 14 g
  • The voltage within the tuning tool does not exceed 50 V
  • Warranty - 1 year

Legal

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use of Levociraptor products. Electric bikes equipped with Levociraptor products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with Levociraptor products can be used exclusively on private property and entirely at one’s own risk. The use of Levociraptor may void the warranty of your eBike.
We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

    You are responsible for any changes you make or attempt to make to your e-bike. Removal of the speed limiter in public places such as streets, squares and cycle paths is FORBIDDEN BY THE LAW. Therefore it is possible to remove the speed limit in places such as circuits, tracks and private properties. Mounting the device may void the factory warranty with the manufacturer. Trailwatts declines all responsibility for any damage caused to pedal assisted bicycles on which the SL speed module system is fitted. Trailwatts declines all responsibility for damage to persons or objects caused in any way linked to the use of SL Speed Module.

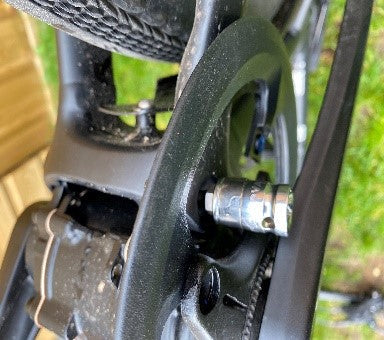

    1. Make sure bike is off and turning bike upside down is easiest for installation on Levo SL.

    2. Remove Bashguard cover bolt – T25 torx.

    3. Remove front motor/ guard bolt – T30 torx.
    4. Remove Upper motor bolt – T30.
    5. Loosen rear motor bolt (do not remove) – T30 torx.
    6. Drive side, Remove centre bolt(T20 torx) and thenremove front motor bolt – T30 torx.
    7. Bashguard/ motor cover can now be removed.
    8.Undo the centre bolt (T25 torx) and remove chainguide, remove upper motor bolt – 5mm Allen Key.
    9. Loosen rear motor bolt (4mm allen key) and pivot motor from front area to gain access to the speed sensor cable. Removal of rear wheel may be necessary to slacken 4mm bolt.
    10. Disconnect speed sensor cable from motor and connect to SL module and connect SL module to the motor noting the male to female fitment and check alignment before pushing connectors together.
    11. Place SL module within seat tube area and connector underneath the main battery leads (large gloss cables). The motor should refit smoothly, if any resistance please check cable position and refit.
    12.Re-install upper and front motor bolts loosely to assist with reversal of above steps to complete install.
    13. Once assembled, switch bike on and test ride. Always wear safety equipment especially a helmet.
    Specialized Vado Installation
    You are responsible for any changes you make or attempt to make to your e-bike. Removal of the speed limiter in public places such as streets, squares and cycle paths is FORBIDDEN BY THE LAW. Therefore it is possible to remove the speed limit in places such as circuits, tracks and private properties. Mounting the device may void the factory warranty with the manufacturer. Trailwatts declines all responsibility for any damage caused to pedal assisted bicycles on which the SL speed module system is fitted. Trailwatts declines all responsibility for damage to persons or objects caused in any way linked to the use of SL Speed Module.
    1. Make sure bike is turned off and turning bike upside down is easiest for installation on Vado SL.
    2. Undo Lower motor cover bolt – T25 torx and remove cover.
    3. Remove the front two motor bolts non drive side and loosen the rear bolt closest to chainstay – T30 Torx.
    4. Remove chain from front chainring and undo all 4 bolts securing chainring to crank arm – M5 allen key.
    5. Remove the two front motor bolts and loosen the rear motor bolt closest to chainstay/ swingarm – T30 torx.
    6.Tilt the motor upwards and unplug the speed sensor cable which is closest to crank arm and connect SL module to the cable and connect female connector from SL module to motor noting the groove and pin alignment. Be careful when seating the connectors.
    7. Once SL module connected to motor, tuck the SL module above motor and lower motor to align bolt holes. Beware of cable routing and make sure no cables are pinched when lowering motor into place.
    8. Replace motor bolts loosely before tightening to factory specification. Make sure you tighten all 6 motor bolts.
    9. Re-attach Chainring and tighten chainring bolts making sure chainring is secured correctly. Re-instate chain.
    10. Fit motor cover.
    11. Switch bike on and test ride to confirm derestricted and no TCU errors.
