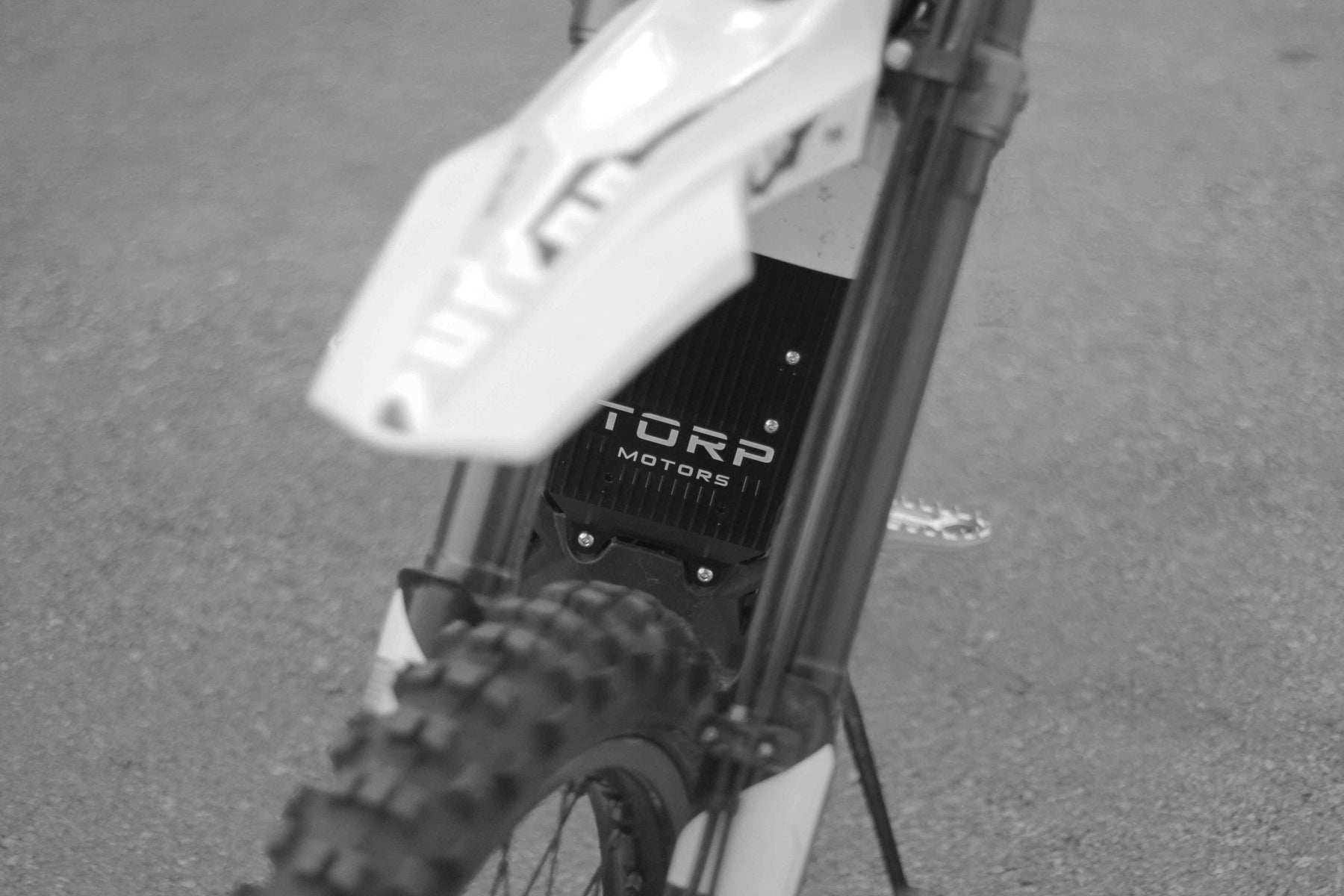

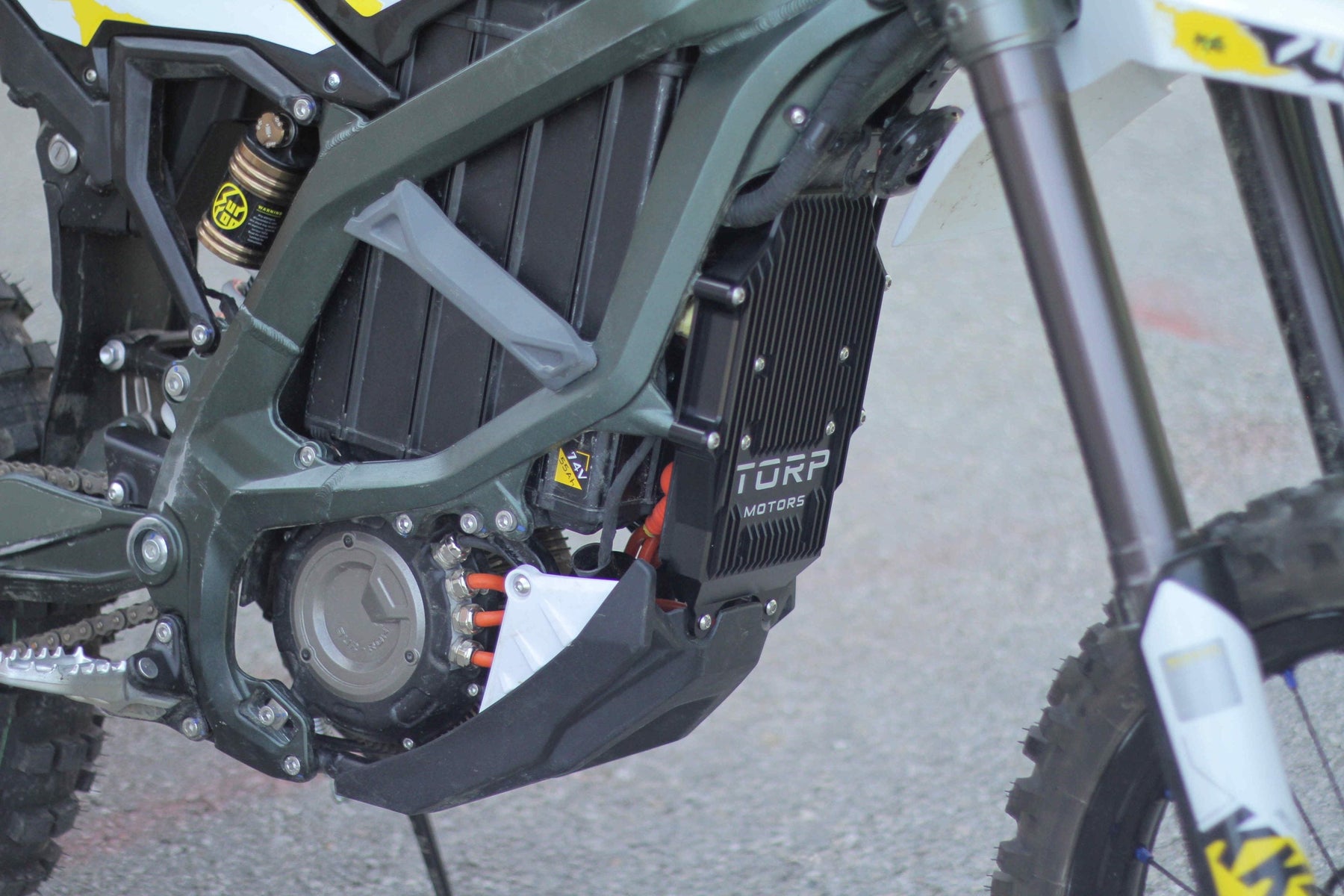

TORP TC1000 controller for Sur-Ron Ultra Bee

TC1000 controller has been developed to boost the performance of the SurRon Ultra Bee e-bikes. Get up to 19kW with Stock battery or 30kW with the aftermarket 72V battery.

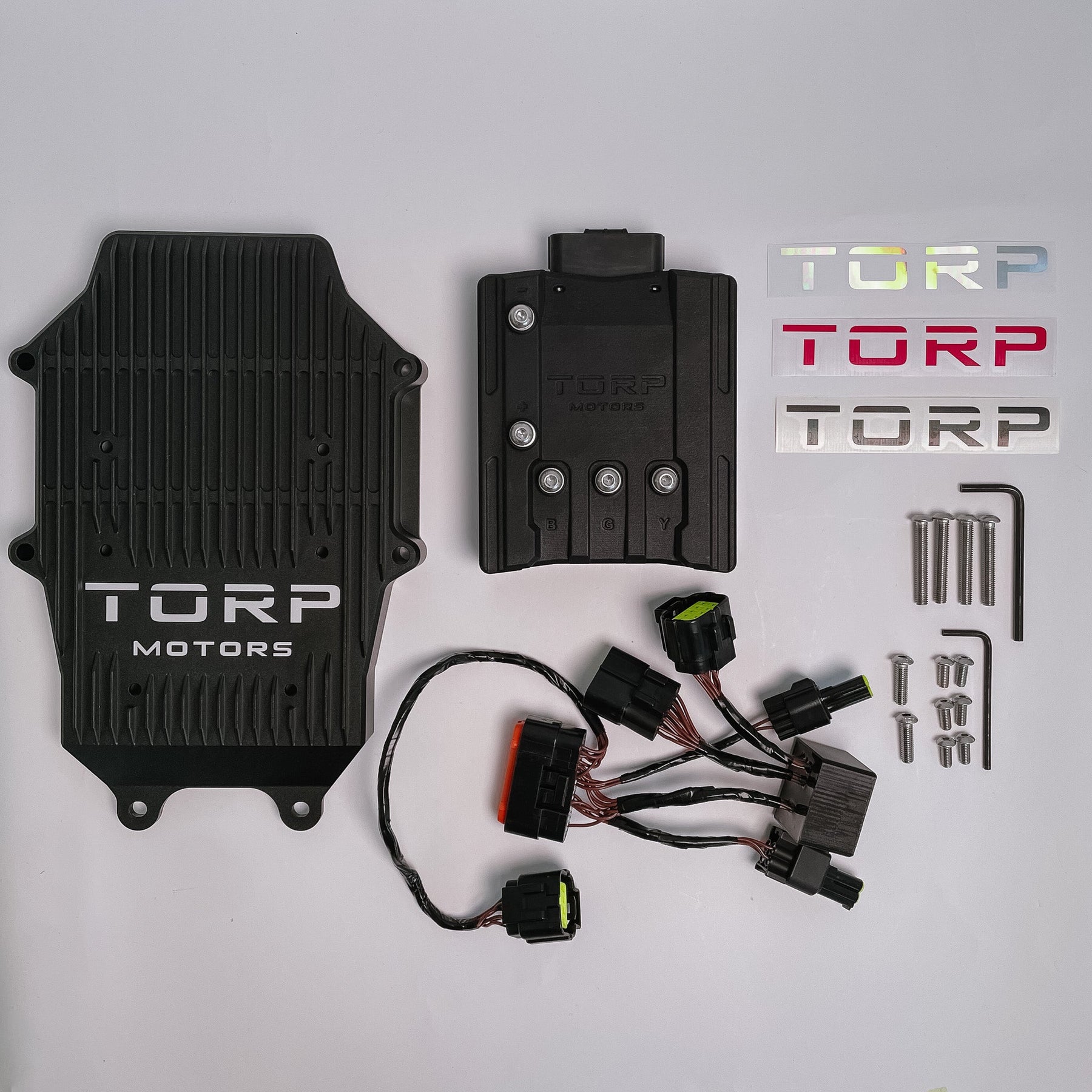

INCLUDED IN THE PACKAGE:

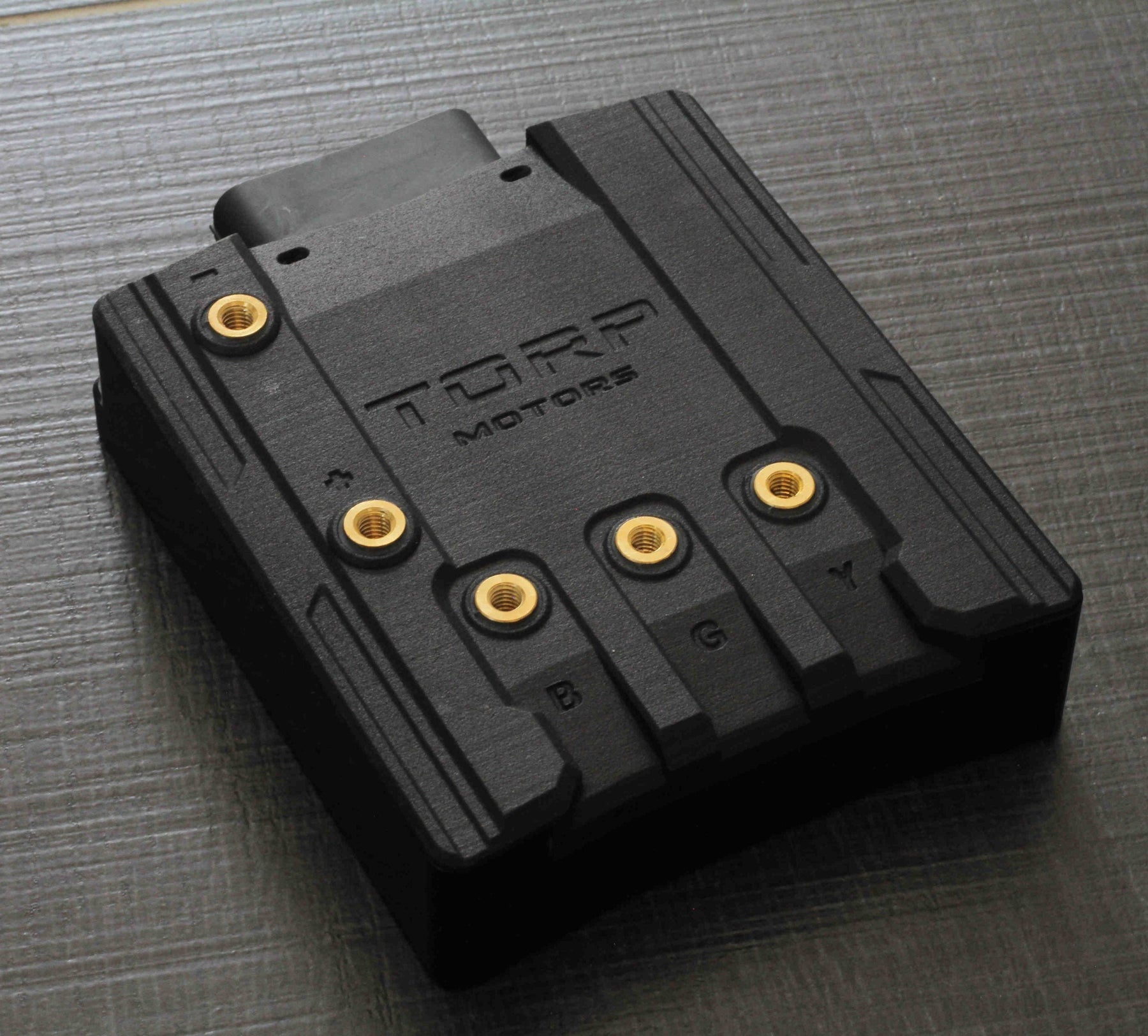

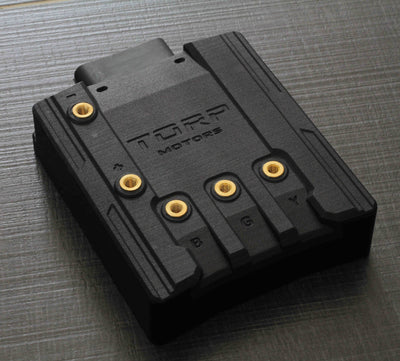

-1x TC1000 Controller

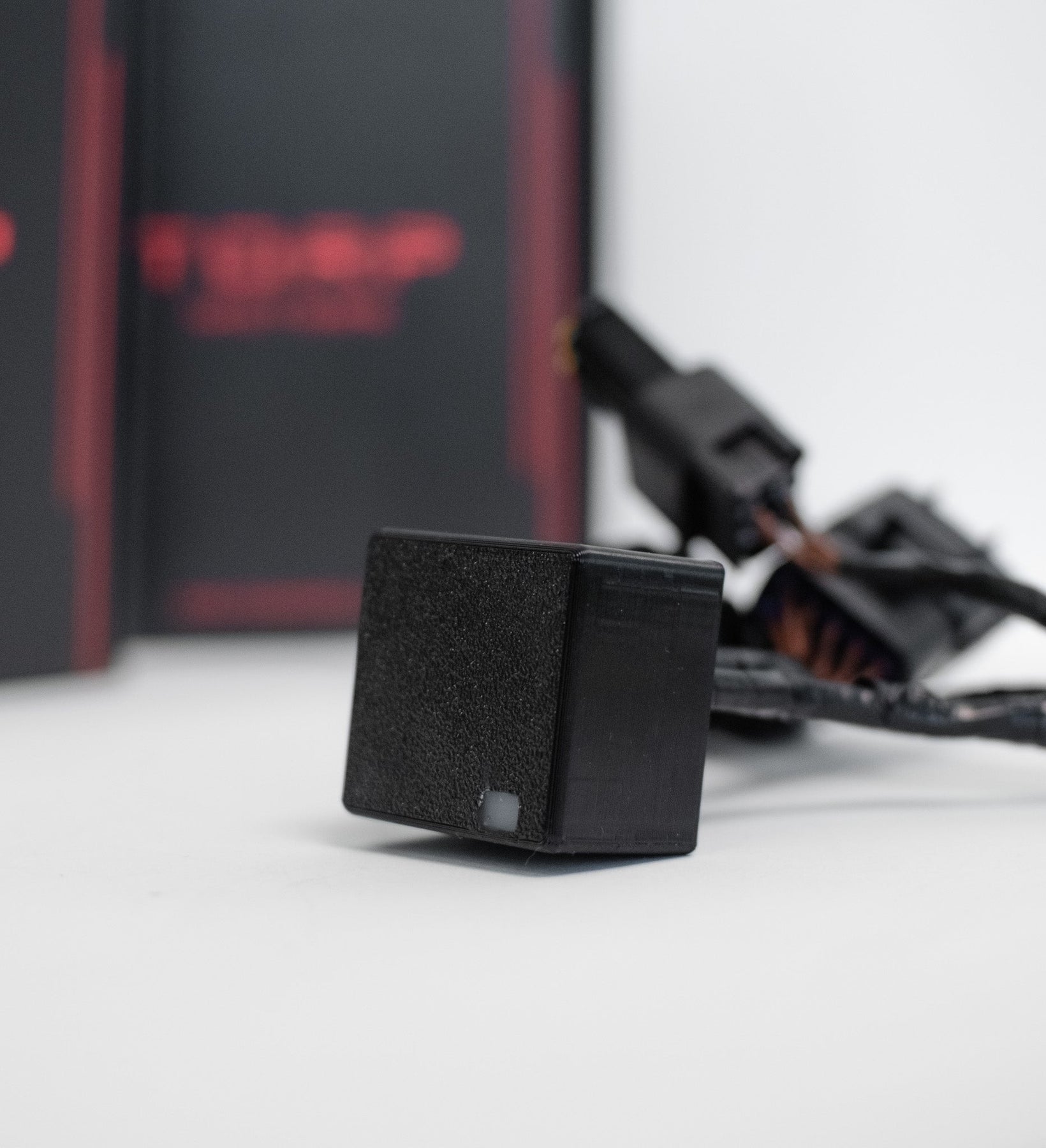

-1x wire harness with special electronics

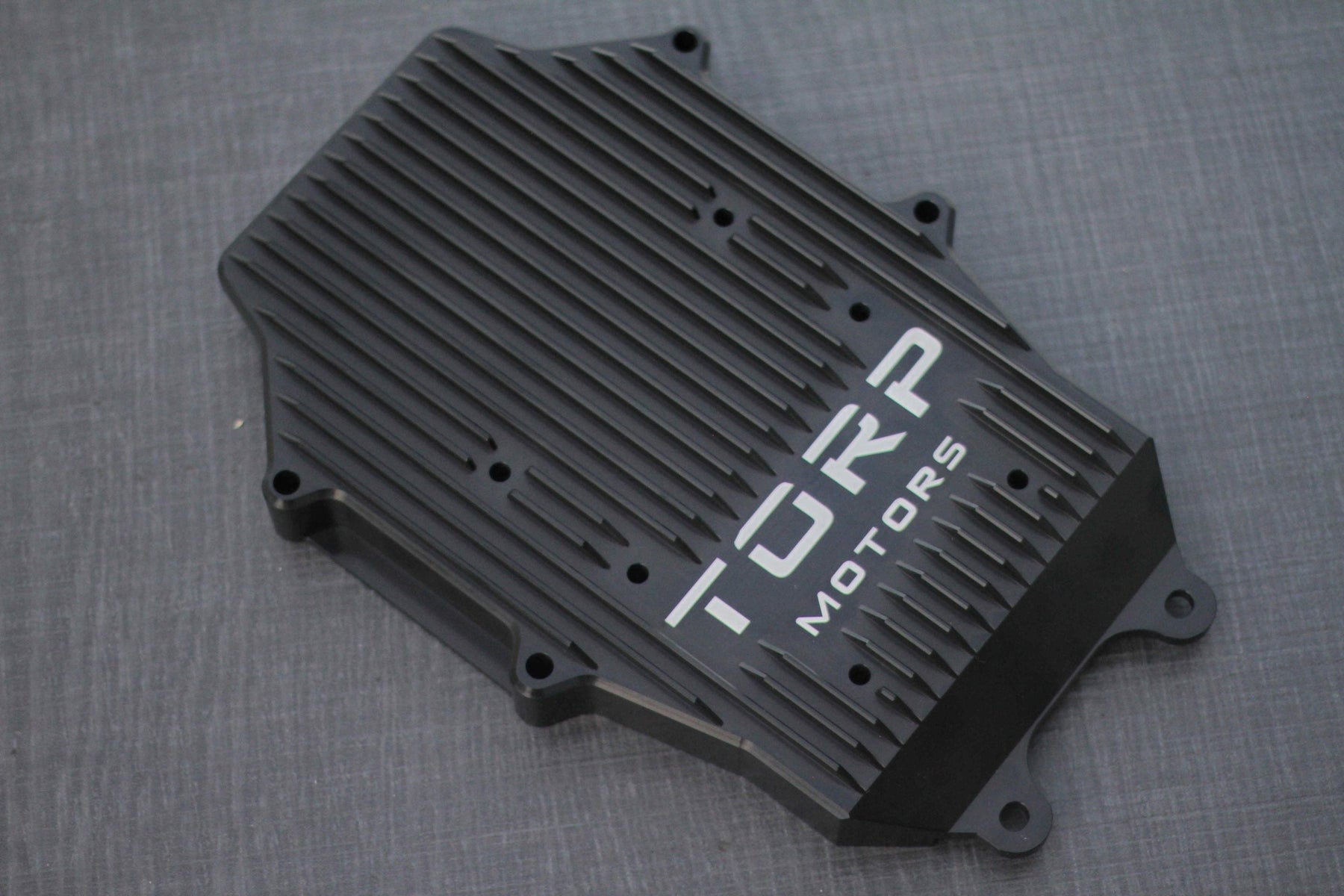

-1x aluminum heatsink (comes in 3 different colors: black, red or blue)
-screws and tools needed for installation
-4x stickers
-1x pack of silicone grease
-short instructions

SPECIFICATIONS:

-Field-oriented control (FOC)
-Supported batteries: from 60V up to 80V nominal 22S (92,4 V fully charged)
-Max Power: 50kW*
-Sensored (HALL Encoder) and sensorless control
-Max Battery Current: 700 A
-Max phase current: 1000 A*

*The maximum power you can achieve depends on the motor and battery you are using. The max PA depends on your motor.

-Efficiency up to 99%
-Working temperature: from -15 to 75 C°
-Bluetooth communication
-Pre-calibrated: Easy calibration through mobile app
-Overcurrent, overvoltage, undervoltage and overtemperature protection
-Communication with stock BMS
-Different regenerative braking and throttle modes
-Weight: 1,3kg
-Features: Mobile App (IOS & Android), stock SurRon display
-Protection class: IP67*
-Regular firmware updates

*While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors. The warranty does not cover malfunction or damage arising from the use of the motor controllers in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.

CHANGE YOUR SETTINGS THROUGH THE APP.

Although the Controller is pre-configured for SurRon and Segway bikes, you can change features and power settings through a user-friendly mobile App.
With the mobile App, available for iOS and Android phones, you`ll have all the important stats in the palm of your hand.

Apple iOS

Android
