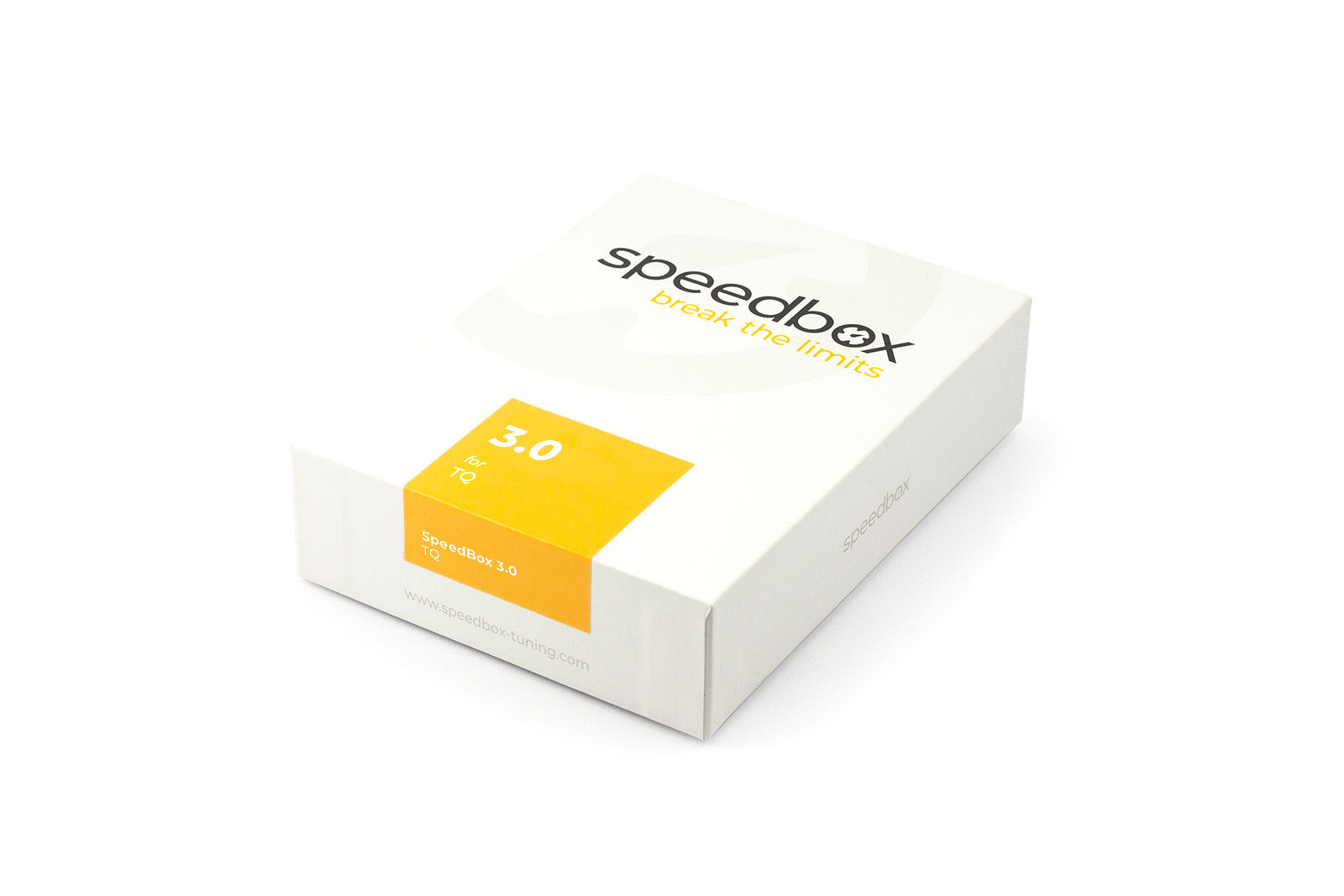

SpeedBox 3.0 for TQ HPR120S, FLYON motors

SpeedBox 3.0 tuning chip enables to select speed limit of your own choice. After the chip is installed, your e-bike’s display will show real data, such as maximum and average speeds, daily mileage and cruising range.

The tuning kit manipulates the speed signal without altering the motor's power relative to pedaling speed. This guarantees a smooth motor control without speed limit interruptions. Depending on a tuning kit, some determine when assistance stops, while others remove the restriction entirely for continuous support. However, the achievable speed mostly depends on the eBike model. Achievable speed can be calculated using a simple formula:

Speed = Cadence [rpm] * Wheel circumference [mm] * Front Chainring Teeth / Rear Chainring Teeth * 60 [min/h] / 1.000.000 [mm/km]

The tuning chip can be activated via the e-bike‘s control unit. To activate or deactivate tuning, use the → ← → ← button sequence in order to switch between two assistance modes twice. The actual speed limit will briefly appear on your display and the motor will support you up to this speed.

To deactivate the tuning kit, use the → ← → ← button sequence again. The value of cadence of 25 rpm will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the chip. You can set the maximum speed of an electric assistance by changing the following modes gradually: EXTREME - HIGH - MID - LOW - MID - HIGH - EXTREME.

An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by turning the rear wheel about 180°. The cadence of 15 rpm on the display corresponds with the limit of 15 km/h, 20 rpm corresponds with the limit of 20 km/h, 25 rpm corresponds with 25 km/h, 30 rpm corresponds with 30 km/h, 99 rpm corresponds with 99 km/h etc. The last displayed limit will be saved after 5 seconds of inactivity.

This tuning kit is compatible with motors:
TQ HPR 120S


In case of updating the software of your e-bike, uninstall SpeedBox from the e-bike first, update the software and reinstall SpeedBox.

We use original connectors for the production of SpeedBox chips ensuring that the installation process is very simple and the chip is connected properly. We have also prepared detailed instructions and videos to make installation easy for you. Disassembly of the tuning chip is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.

If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 0.6 miles (1 km) before the chip is activated.

Installation Guide:

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one’s own risk.

The use of SpeedBox may void the warranty of your ebike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

SpeedBox Products are thoroughly tested and we stand by their quality. SpeedBox provide Life Long warranty to all their Products!

If You have any questions, please do not hesitate to contact us. Thank you for looking! Two Wheels Empire Team

Warranty does not cover damage resulting from eBike software updates. Remove the tuning kit before updating the software. Check with us first to ensure the kit is compatible with your updated eBike. We cannot guarantee that the kit will function the same after updates. Please exercise caution. If your Speedbox tuning kit needs updating due to updated eBike software, please contact us at hi@twowheelsempire.com. Preliminary costs are 49£ + shipping costs.
