BadassBox 4 Brose CS-Set

Derestrict your e-bike for a new 31mph (50km/h) speed limit!

Compatible with Brose motors with specific sensor on the chain stay. Please refer to the sensor pictures!

Regular price£133.00
/

&Free Delivery Worldwide

You can save money when buying more than one tuning kit. Can be combined with other brand/type tuning kits!
Buy 2 save 3%
£133.00 £129.01
Buy 3 save 7%
£133.00 £123.69

GO FROM CAPTAIN SLOW OF YOUR CYCLING GROUP TO JIMMY JET!

- TOM E.

#1 SELLER
2 YEARS WARRANTY
PREMIUM CUSTOMER SUPPORT
FREE SHIPPING WORLDWIDE
EASY TO INSTALL
UNDETECTABLE

Unlock the full potential of your ebike!

  • You will ride faster and experience the thrills of owning a derestricted ebike -you will love the difference!
  • Install it effortlessly - easy and fast installation!
  •  Feel safe for your e-bike and warranty - it's safe for ebike and undetectable to keep your warranty safe!

Quick plug-and-play installation. No setup!

  • Increase the speed limiter from original 16 mph (25km/h) to a new 31mph (50km/h) speed limit!
  • Fully undetectable! After BadassBox removal there is no way to tell if it has been used on your e-bike!
  • Get after-sales support from us and a two year warranty from BadassBox!

The bike feels completely different once derestricted - it's just like a whole different bike! The rides are so much more fun now! Tuning kits are safe to your bike and every ebiker should have one installed! You will love riding your ebike with it - guaranteed!

Matt - Owner of Two Wheels Empire

Frequently Asked Questions

The badassBox is attached to the speed sensor of the e-bike and overrides the 25 km/h speed limit - you can expect to reach speeds of up to 45-50km/h, depending on the bike and gearing. Your displayed speed will be 2 times slower than your real speed. We recommend the use of GPS-related accessories for a more precise data acquisition of driving data (smartphone, bike computer, etc.).

The contactless and wireless badassBox transmits a modified speed signal in order to override the speed limit of your e-bike – without interfering with the motor's electronic circuitry or software. There's no need to open the motor and there is no risk of damaging it, the BadassBox can be fitted or removed in seconds.

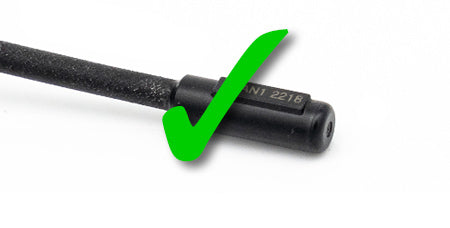

This tuning kit is made to fit bicycles with Brose motors; please check the speed sensor type to select the right kit. This kit will fit your bike perfectly if you have pin shape speed sensor:

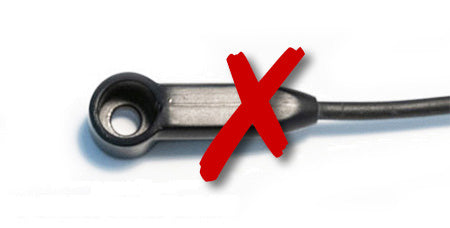

And you need the BadassBox 4 Brose if your speed sensor looks like this:




The assembly requires a small conversion. Please read the instructions on the left before ordering! A quality product designed, engineered and manufactured in Germany.

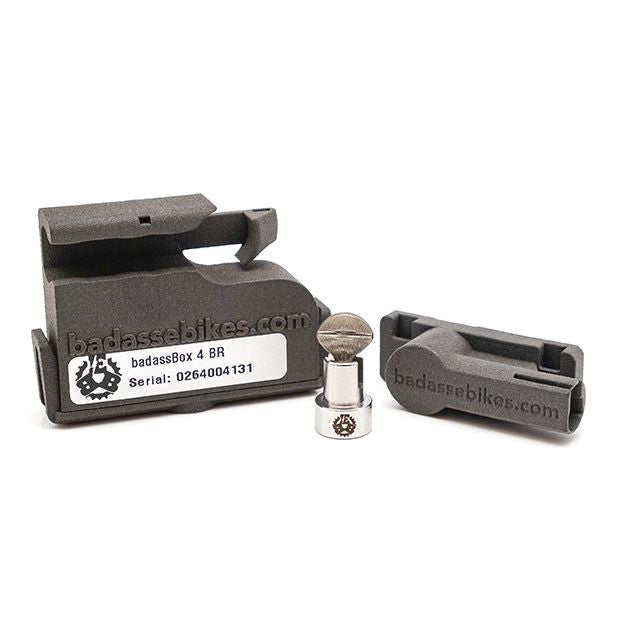

The delivery includes the following parts:

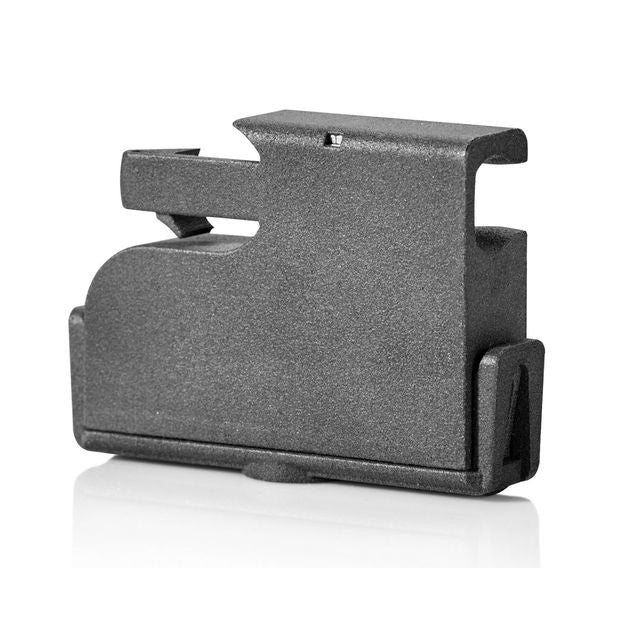

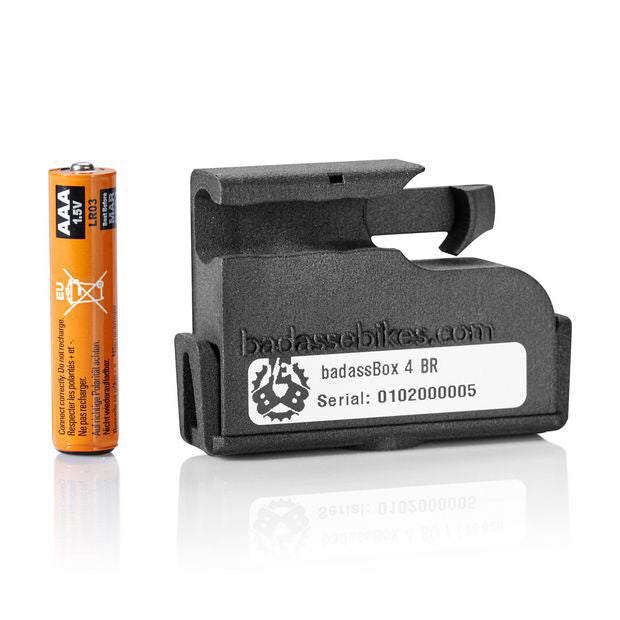

- one badassBox 4 Brose
- one badassBox 4 housing cover

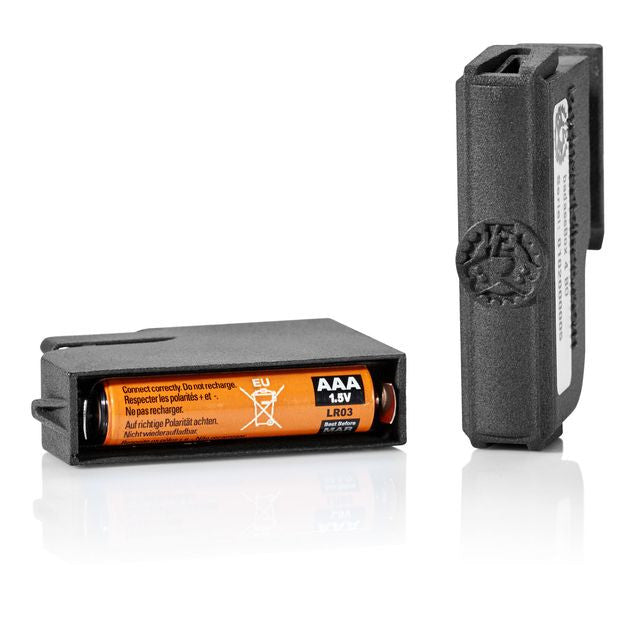

- one AAA battery
- one spoke magnet with thumb screw
- one CS Adapter
- four cable ties



The pin-shaped CS sensor is located in the area of the dropout. To get to the sensor you have to remove the rear wheel.



Unscrew the screws of the bracket that secures the sensor to the dropout.



Separate the sensor from the bracket.



Insert the pin-shaped sensor into the adapter so that the flat side of the sensor is aligned with the corresponding recess in the adapter. The sensor must be inserted completely into the adapter, so that only the cable protrudes and the snap closes flush with the surface of the adapter. (In the photo, the sensor is not yet completely inserted).



Attach the adapter to the frame of your bike with the supplied cable ties.



Reinstall the rear wheel.



Slide the badassBox onto the adapter until it clicks into place.



Mount the spoke magnet and align it with the edge of the badassBox housing. That's it. Have fun with your faster e-bike!

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use of BadassBox products. Electric bikes equipped with BadassBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with BadassBox products can be used exclusively on private property and entirely at one’s own risk. The use of BadassBox products may void the warranty of your ebike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

BadassBox products are thoroughly tested and we stand by their quality - Badass Box provides 2 years warranty to all their products.
