Main Product Information
The PearTune MSO 4.0 is a revolutionary tuning kit that suppresses the speed limiter of your
electric bike.
After installing and activating your PearTune, the display will show actual values such as
maximum speed, average speed, daily distance traveled, and range. You can reach unlimited
speeds.
The display is not necessary to enjoy your new speed limit with PearTune. Once activated, the
tuning kit supports speeds up to 99 km/h (approximately 61.5 mph)! To be able to use all the
functions of the tuning, the display of the total kilometers and the speed is required. If your
e-bike does not have a display, you can retrofit the Ride Dash Plus, for example.
NOTE: Do not use the Ride Control app as a display, as this app may prompt you to update the
software.
The tuning kit manipulates the speed signal without altering the motor's power relative to
pedaling speed. This ensures smooth motor control without interruptions from speed limits.
However, the achievable speed largely depends on the eBike model. The achievable speed can be calculated using a simple formula:
Speed = Cadence [rpm] * Wheel circumference [mm] * Front Chainring Teeth / Rear Chainring Teeth * 60 [min/h] / 1,000,000 [mm/km]
The tuning kit can be activated directly on your bike’s controllers. After pressing the activation
buttons, you will be able to ride at speeds of 25 mph (40 km/h), 31 mph (50 km/h), and even
more than 37 mph (60 km/h).
Activation involves one short press of the WALK button and/or the [+ - + -], [- + - +], [+ + - -], or [- - + +] / (↑ ↓↑ ↓) buttons.
Indication of activation/deactivation is a displayed number, 9.9/2.5 kph for a few seconds (or
equivalent in mph).
To deactivate the tuning kit, press the same buttons again. Your e-bike will then operate as it did before the chip's installation.
With the new PearTune 4.0, you have greater control over your tuning kit than ever before. It
offers features such as:
- Adjustable speed limit in preferred range settings
- Chip lock settings
- On/Off or always ON settings
- Traveled distance calculation settings
- Chip reset settings
- Preferred button for activation/deactivation settings
- Chip software version information settings
By default, PearTune MSO 4.0 is set to activation/deactivation mode. The maximum speed is on
unlimited settings, and activation/deactivation can be done by pressing the WALK button or [+ -
+ -] (starting from the highest assistance level, begin with [-]).
To change settings to your preference, download the latest chip service menu and follow the
CHIP SERVICE MENU CONTROL PROCEDURE to enter the desired section.
If you need any help adjusting your settings, feel free to contact us. We're here to assist every
step of the way.

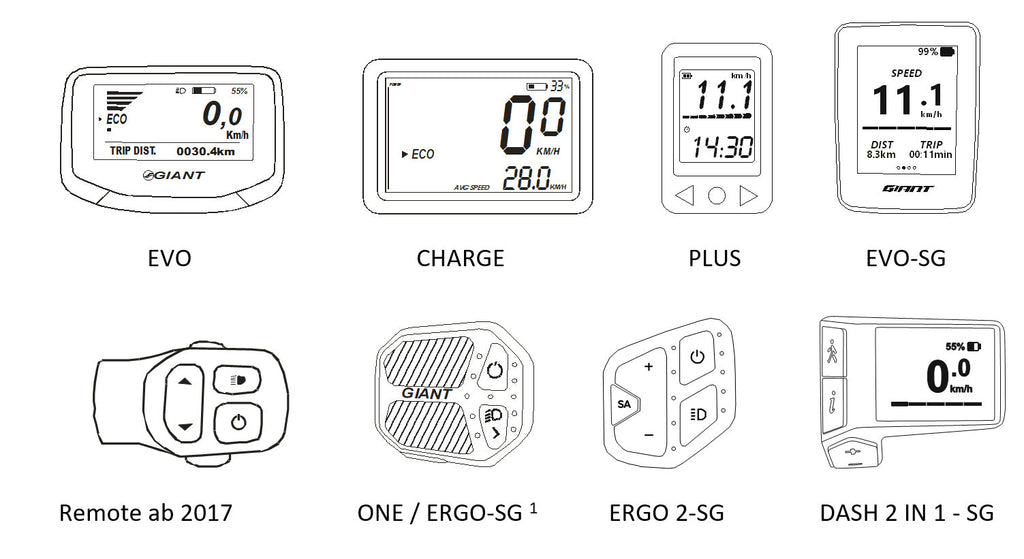

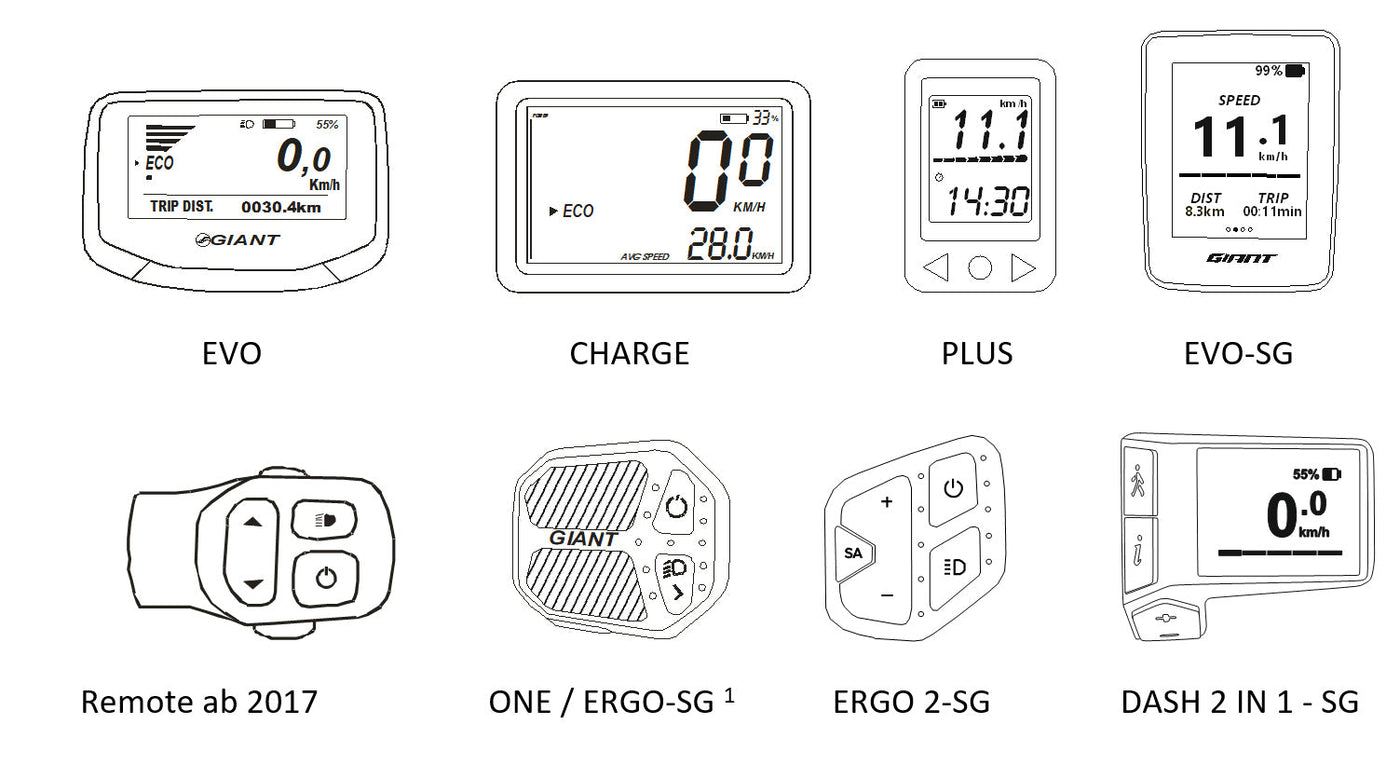

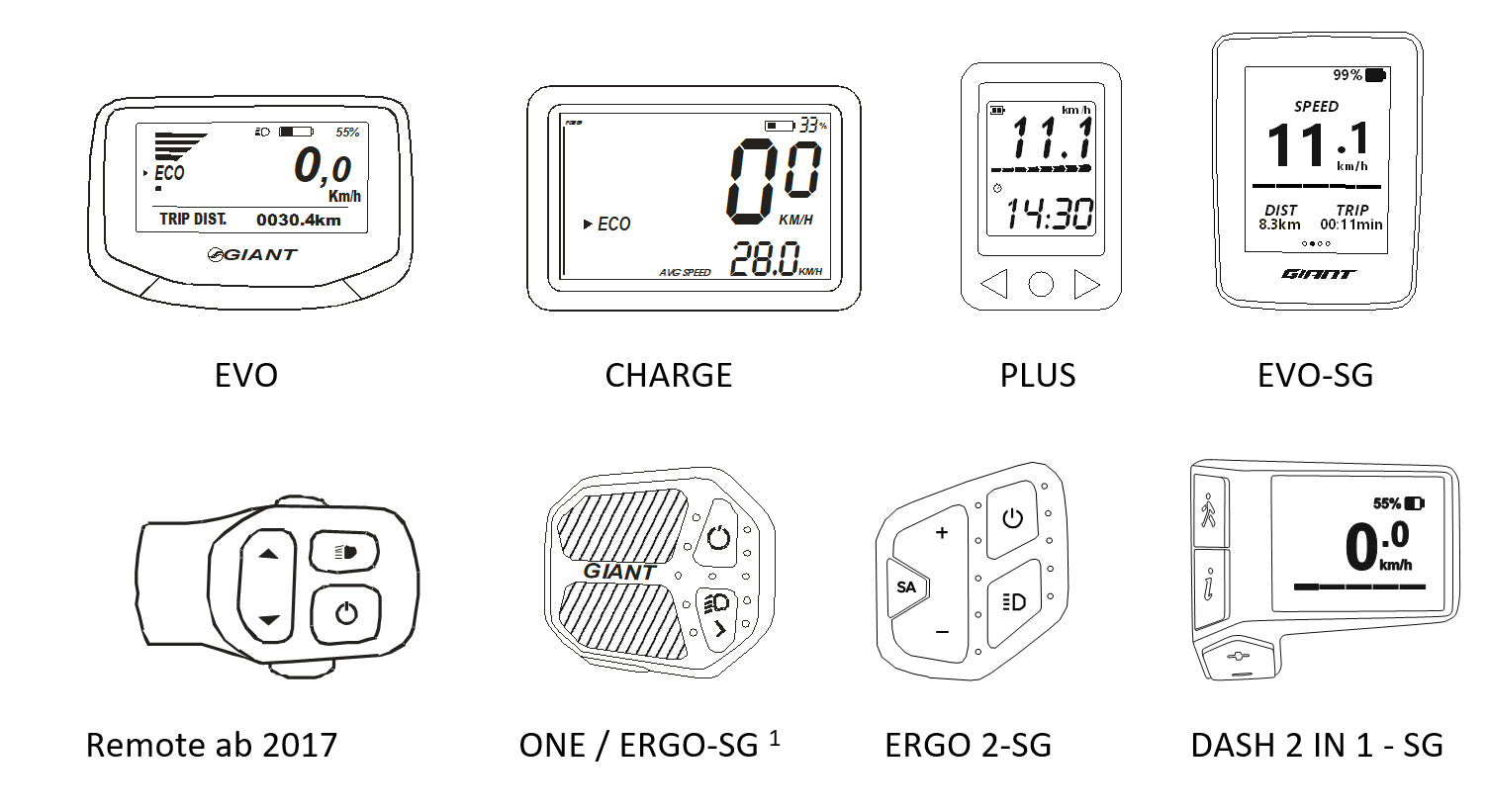

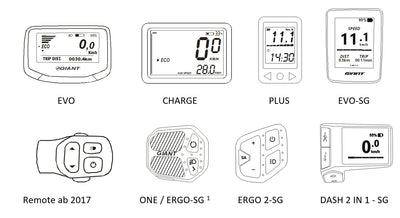

Compatible with motor: Giant SyncDrive Sport / Pro / Life / Core drive systems from model year 2017 with displays EVO, EVO-SG, CHARGE, and PLUS along with control units ONE, DASH 2 IN 1-SG, ERGO-SG, and ERGO2-SG.
Not Compatible with:
All original Yamaha motors (PW, PW-X, PW-X2, PW-X3, PW-SE, PW-TE, PW-ST); you
would need PearTune 4.0 for Yamaha.
Giant SyncDrive motors before model year 2017.
SyncDrive Pro2 from model year 2022 onwards; you would need PearTune MSO 4.0 for Giant Syncdrive Pro2 / Sport2 + RideControl GO

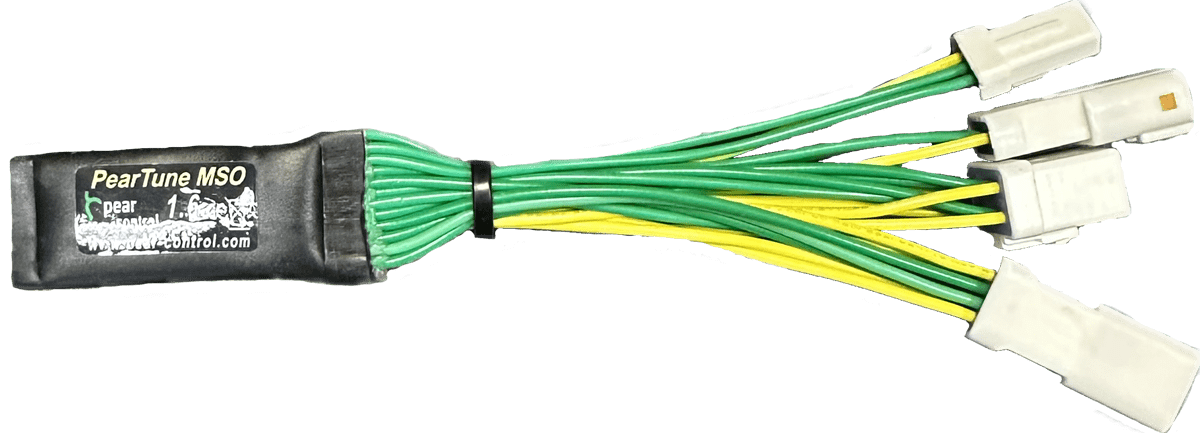

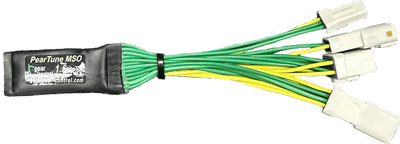

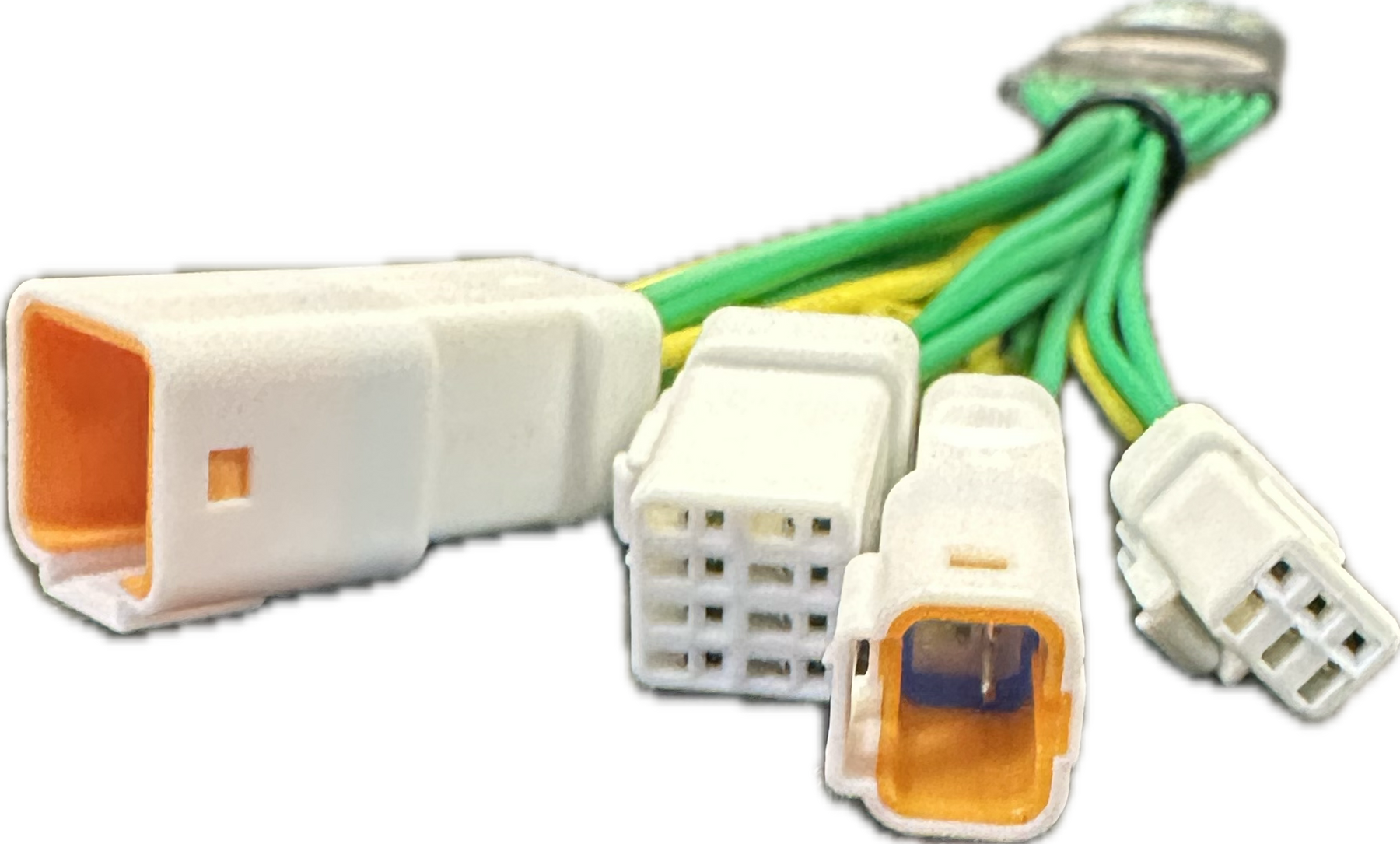

When connecting the PearTune tuning kit to an e-bike, you will find matching connectors to
make the installation very simple.
If you are planning to install Peartune on a brand-new bike, make sure you ride it for at least 0.6
miles (1 km) before the chip is activated.

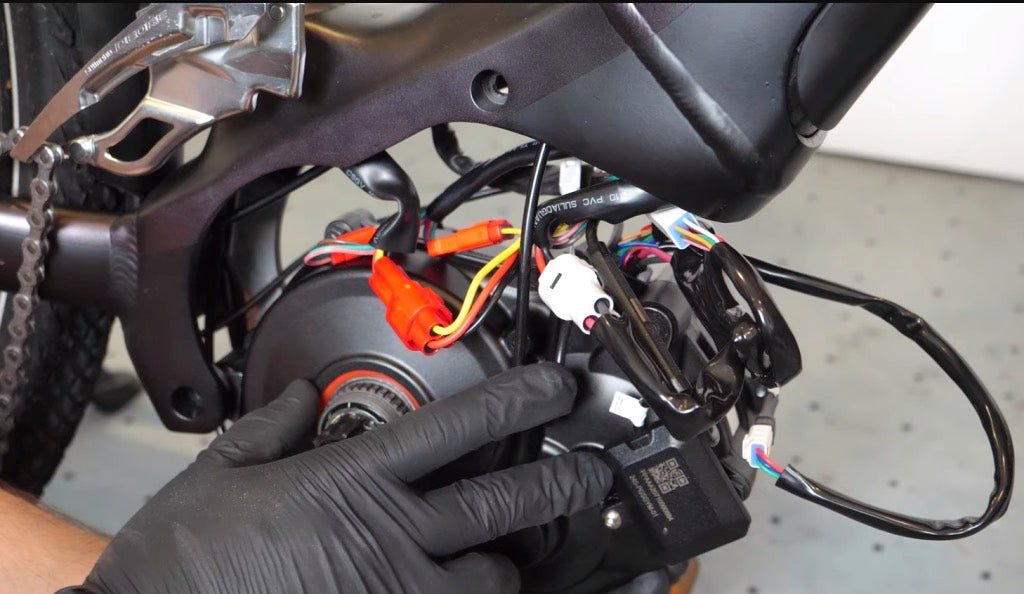

1. Remove the plastic cover of the central drive from below. Connectors and cables are
located under the engine.
2. Disconnect the eight-pin connector between the display and the engine body and the
three-pin connector between the speed sensor and the engine body.

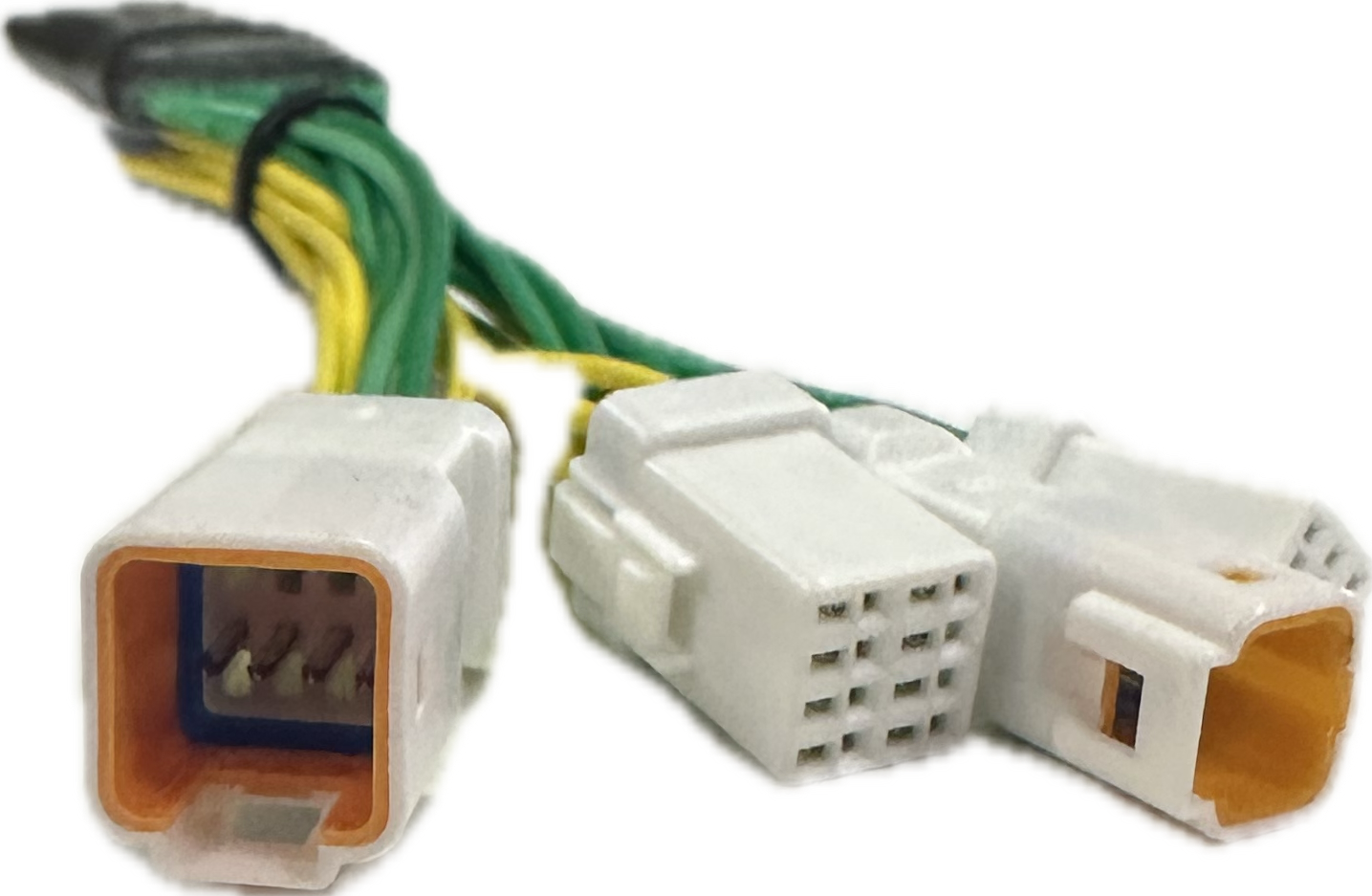

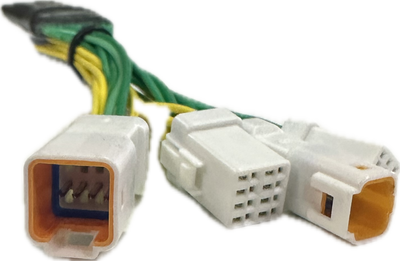

3. Connect all four corresponding connectors on the MSO to the corresponding connectors
on the e-bike. All connectors are equipped with locks to prevent incorrect connections.
4. Place the MSO in a suitable position, ensuring that cables are not bent or pinched when
closing the motor.
If you encounter any difficulties with installation or disassembly, do not hesitate to contact us.
Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use Peartune products. Electric bikes equipped with Peartune products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with Peartune products can be used exclusively on private property and entirely at one’s own risk.
The use of Peartune may void the warranty of your ebike.
We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.
Peartune products are thoroughly tested and we stand by their quality. Peartune provides 2 year warranty to all their Products!
If You have any questions, please do not hesitate to contact us. Thank you for looking! Two Wheels Empire Team
Warranty does not cover damage resulting from eBike software updates. Remove the tuning kit before updating the software. Check with us first to ensure the kit is compatible with your updated eBike. We cannot guarantee that the kit will function the same after updates. Please exercise caution.
Unlock the full potential of your ebike!
- You will ride faster and experience the thrills of owning a derestricted ebike - you will love the difference!
- Install it effortlessly- quick plug-and-play connection - no setup required.
- Feel safe for your e-bike and warranty- it's safe for ebike and undetectable to keep your warranty safe!
Quick plug-and-play installation. No setup!
- Increase the speed limiter from original 16 mph (25km/h) to derestricted maximum speed
- See accurate speed on your ebike display!
- Enable/disable when needed! Just press WALK or '+ - + -' buttons
- Get after-sales support from us and 2 year warranty from Peartune!
The bike feels completely different once derestricted - it's just like a whole different bike! The rides are so much more fun now! Tuning kits are safe to your bike and every ebiker should have one installed! You will love riding your ebike with it - guaranteed!
