SpeedFun Furious Evo easy+ for Bosch Performance Line SX (gen. 4) Smart System with Rim Magnet

Speed sensor magnet location: on the tire valve
Drive Unit model numbers: BDU3142 / BDU3143 / BDU3144 / BDU3145
Controllers and displays: LED Remote/System Controller/Mini Remote + Kiox 300/500, + Intuvia 100 + Purion 200/400
Not compatible with:
Bosch ABS system
Bosch Connect Module
“Classic” magnets on the spokes or brake disc.

Regular price£239.00
/

&Free Delivery Worldwide.

Please select an option:

Motor

You can save money when buying more than one tuning kit. Can be combined with other brand/type tuning kits!
Buy 2 save £7.17
£239.00 £231.83
Buy 3 save £16.73
£239.00 £222.27

GO FROM CAPTAIN SLOW OF YOUR CYCLING GROUP TO JIMMY JET!

- TOM E.

Tuning kit does not show real speed data DOESN'T SHOW REAL SPEED DATA
The active tuning kit makes the speedometer show a slower speed
unlimited-max-speed-setting UNLIMITED MAX SPEED SETTING
Tuning kit removes all speed limits
on/off activation ON/OFF TUNING ACTIVATION
The tuning kit is active by default, but can be set to ON/OFF mode. This change is permanent.
free shipping FREE SHIPPING WORLDWIDE
warranty 1 YEAR WARRANTY
easy to install EASY TO INSTALL

Main Product Information

SpeedFun Furious Evo easy + is a tuning for ebike equipped with a Bosch Smart System motor that allows you to remove the 25 km/h speed block.

This speed release device is compatible only and exclusively with Bosch Performance Line SX (gen.4) motors equipped with a magnet on the valve (Bosch Rim Magnet) with LED Remote/System Controller command (also compatible with Led Remote + Kiox 300/500, Intuvia 100, Purion 400 or System Controller + Mini Remote) or Purion 200.

The tuning kit manipulates the speed signal without altering the motor's power relative to pedaling speed. This guarantees a smooth motor control without speed limit interruptions. Depending on a tuning kit, some determine when assistance stops, while others remove the restriction entirely for continuous support. However, the achievable speed mostly depends on the eBike model. Achievable speed can be calculated using a simple formula:

Speed = Cadence [rpm] * Wheel circumference [mm] * Front Chainring Teeth / Rear Chainring Teeth * 60 [min/h] / 1.000.000 [mm/km]

Activation:
- Turn Off the ebike.
- Place the chain on the longest gear (the smallest rear sprocket).
- Position the left pedal at 11:00. From now on, do not turn the rear wheel.
- Turn On the ebike and wait for the complete check. Don't spin the rear wheel (not yet ..).
- Raise the rear wheel, give a strong pedal. Let the wheel spin over 30 km/h for a few seconds.
The system recognizes the acceleration and considers it as a command to activate or deactivate (cyclically) the speed release. Upon activation, the display (if present) shows the speed that passes from real to manipulated in the manner described above. When deactivated, the display shows the speed change from manipulated to real and the bike returns to its original condition.

This speed release device is compatible only and exclusively with Bosch Performance Line SX (gen.4) motors equipped with a magnet on the valve (Bosch Rim Magnet) with LED Remote/System Controller command (also compatible with Led Remote + Kiox 300/500, Intuvia 100, Purion 400 or System Controller + Mini Remote) or Purion 200.

ATTENTION!
This device is not compatible with ebikes equipped with a “classic” magnet on the spokes or brake disc.
This device is not compatible with ebikes equipped with the Bosch ABS system.
This device is not compatible with ebikes equipped with a GPS system (Bosch ConnectModule).

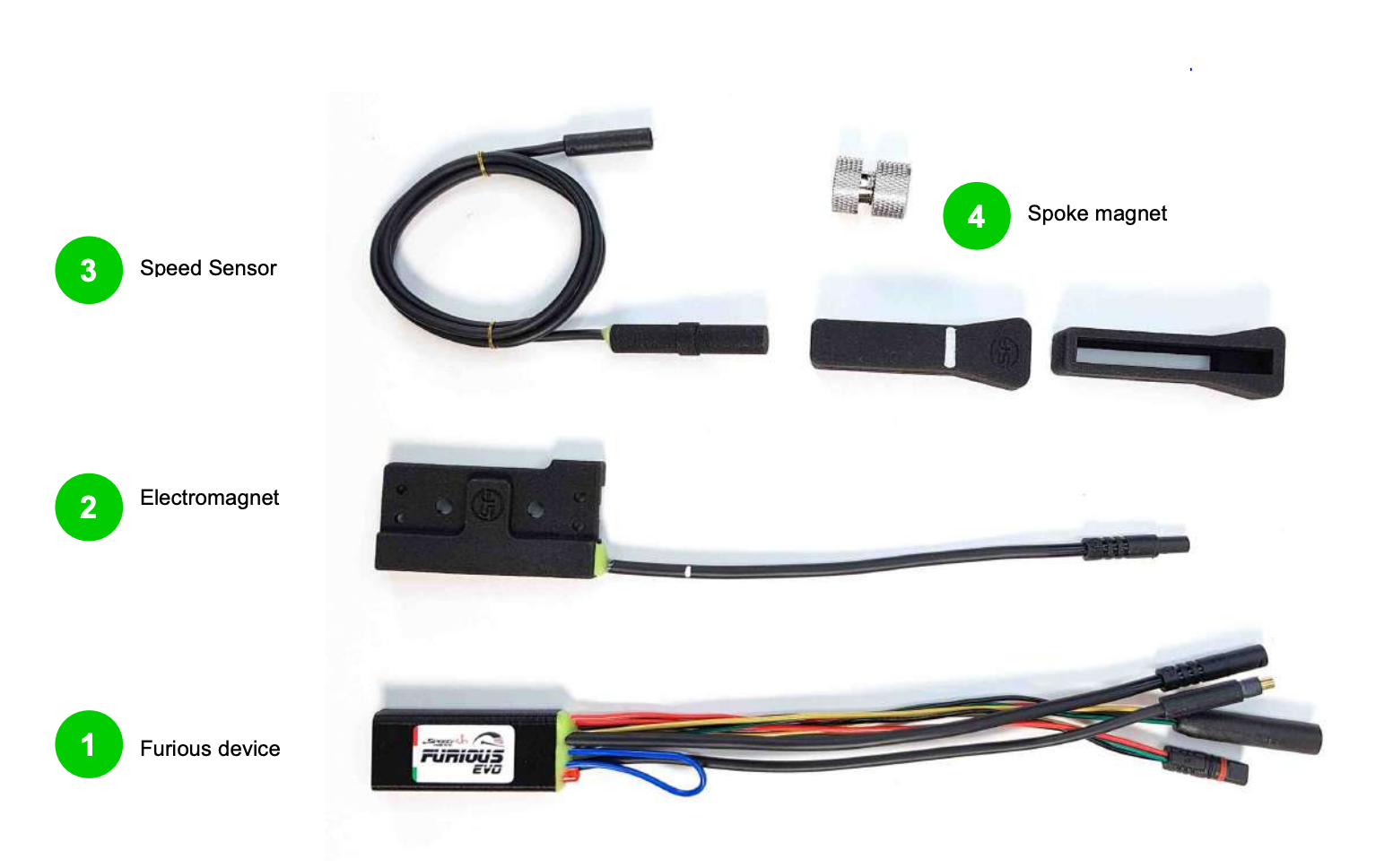

When connecting Tuning Kit to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions to make installation easy for you. Disassembly of our tuning kit is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us. If you are planning to install Speedfun on a brand-new bike, make sure you ride it for at least 0.6 miles (1 km) before the tuning kit is activated.

Installation instruction for motors with top attachments (BDU3142 and BDU3143)
Installation and use instruction for motors with diagonal attachments (BDU3144 and BDU3145)

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use Speedfun products. Electric bikes equipped with Speedfun products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with Speedfun products can be used exclusively on private property and entirely at one’s own risk. The use of Speedfun may void the warranty of your ebike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.
Speedfun Products are thoroughly tested and we stand by their quality. Speedfun provide 1 year warranty to all their Products!

Warranty does not cover damage resulting from eBike software updates. Remove the tuning kit before updating the software. Check with us first to ensure the kit is compatible with your updated eBike. We cannot guarantee that the kit will function the same after updates. Please exercise caution.
