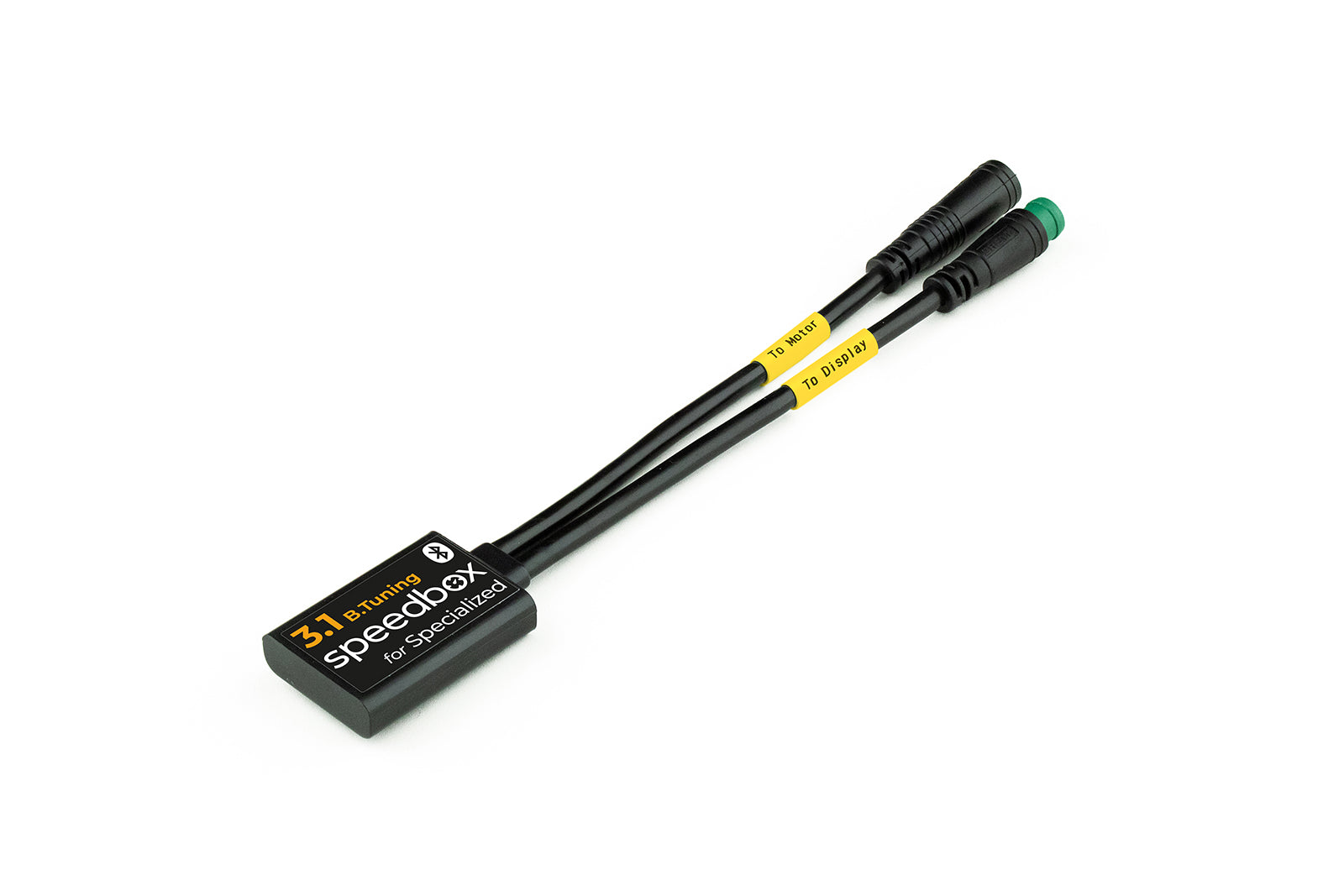

SpeedBox 3.1 B.Tuning for Specialized Levo, Kenevo, Levo SL, Kenevo SL, Creo SL, Vado SL

The tuning kit manipulates the speed signal without altering the motor's power relative to pedaling speed. This guarantees a smooth motor control without speed limit interruptions. Depending on a tuning kit, some determine when assistance stops, while others remove the restriction entirely for continuous support. However, the achievable speed mostly depends on the eBike model. Achievable speed can be calculated using a simple formula:

Speed = Cadence [rpm] * Wheel circumference [mm] * Front Chainring Teeth / Rear Chainring Teeth * 60 [min/h] / 1.000.000 [mm/km]

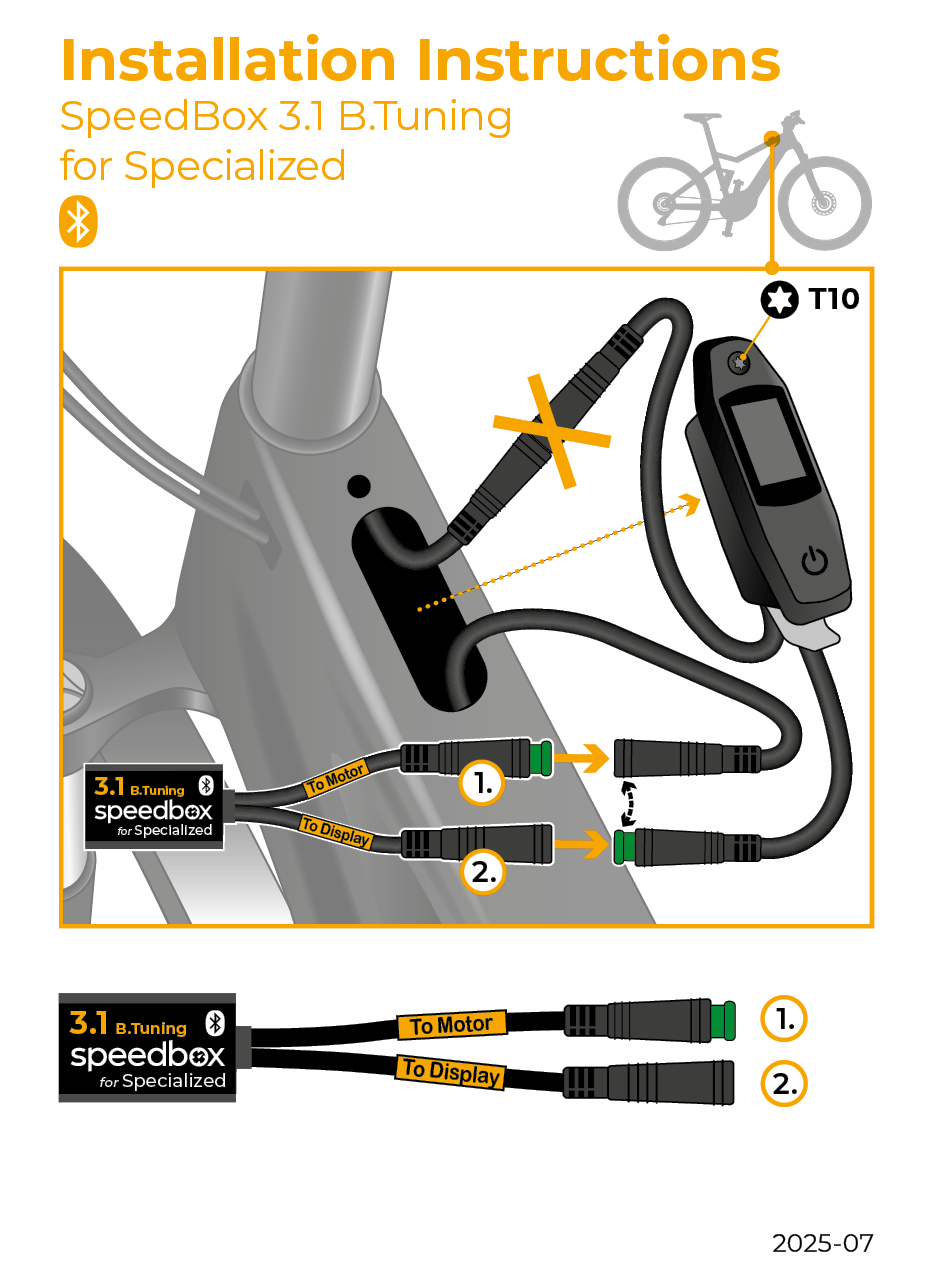

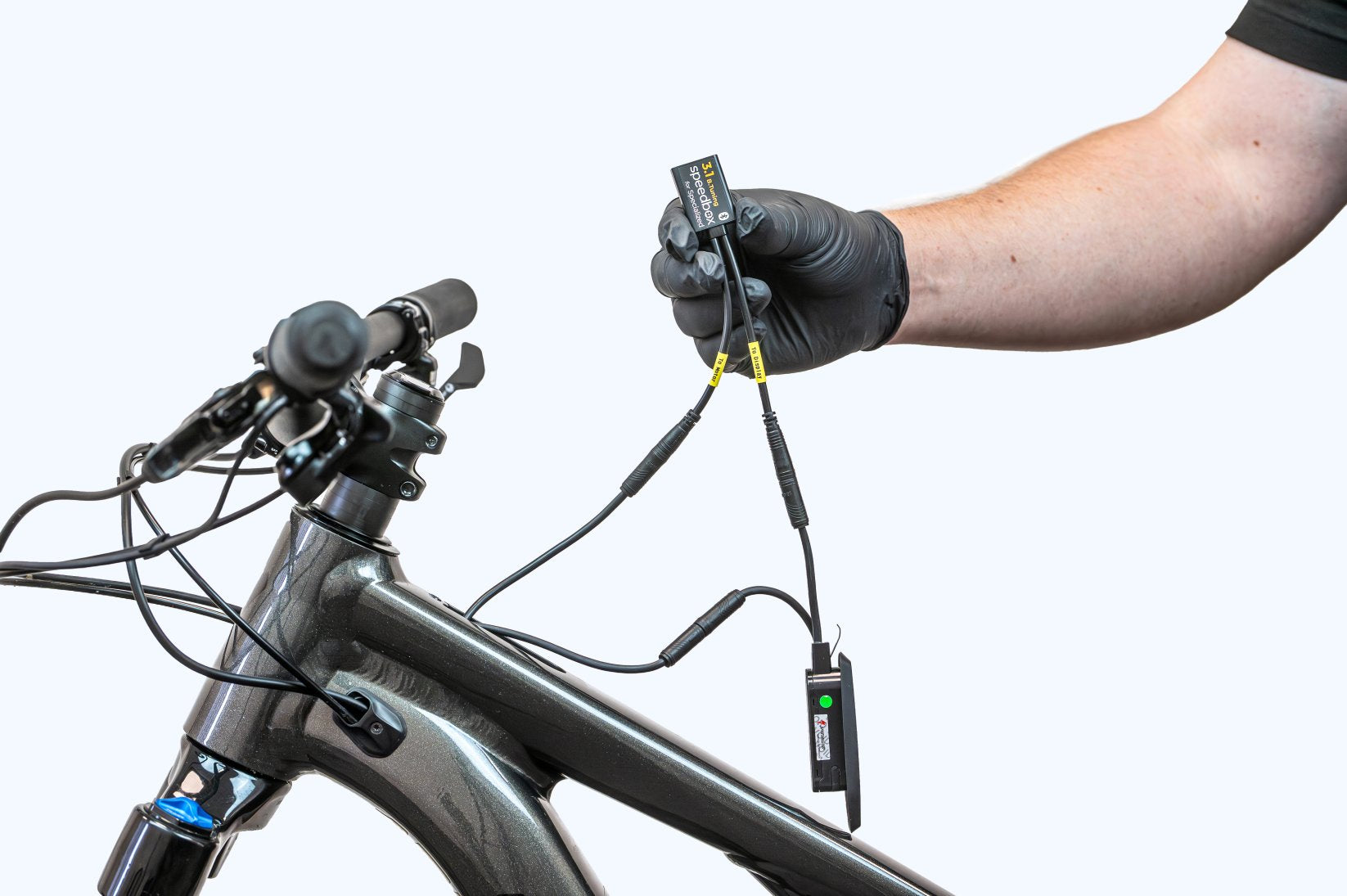

SpeedBox is installed into the e-bike frame under the TCU/ TCD unit. You will activate the tuning by switching the e-bike off and on twice. After that, the tuning is still active with a set maximum assistance speed of 50 km/h.

You can set the maximum speed limit by switching the modes from TURBO mode three levels down and then three levels up (TRAIL - ECO - OFF - ECO - TRAIL - TURBO). The display will show the default maximum speed limit of 25 km/h. With each brief activation of the WALK function, you will increase the maximum speed limit by 5 km/h (some types of displays may round up the number to the nearest whole number). The last displayed limit will be saved after 5 seconds of inactivity. The set limit must be confirmed by turning the e-bike off and on twice.

You can check the currently set maximum speed limit by pressing the + - + - button combination.

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one’s own risk.

The use of SpeedBox may void the warranty of your ebike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

SpeedBox Products are thoroughly tested and we stand by their quality. SpeedBox provide Life Long warranty to all their Products!

If You have any questions, please do not hesitate to contact us. Thank you for looking! Two Wheels Empire Team

Warranty does not cover damage resulting from eBike software updates. Remove the tuning kit before updating the software. Check with us first to ensure the kit is compatible with your updated eBike. We cannot guarantee that the kit will function the same after updates. Please exercise caution. If your Speedbox tuning kit needs updating due to updated eBike software, please contact us at hi@twowheelsempire.com. Preliminary costs are 49£ + shipping costs.

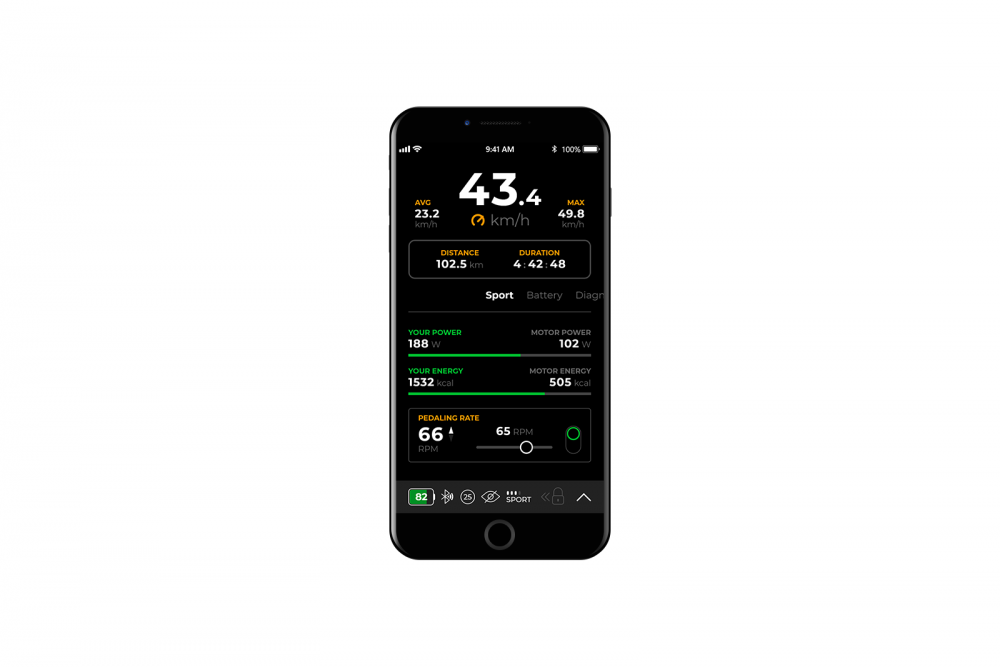

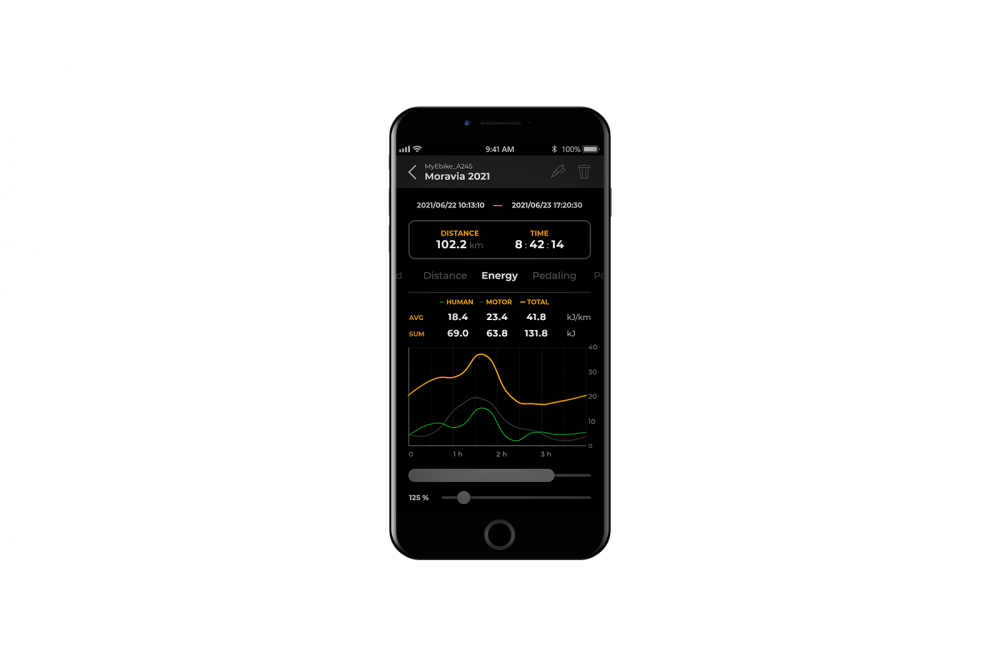

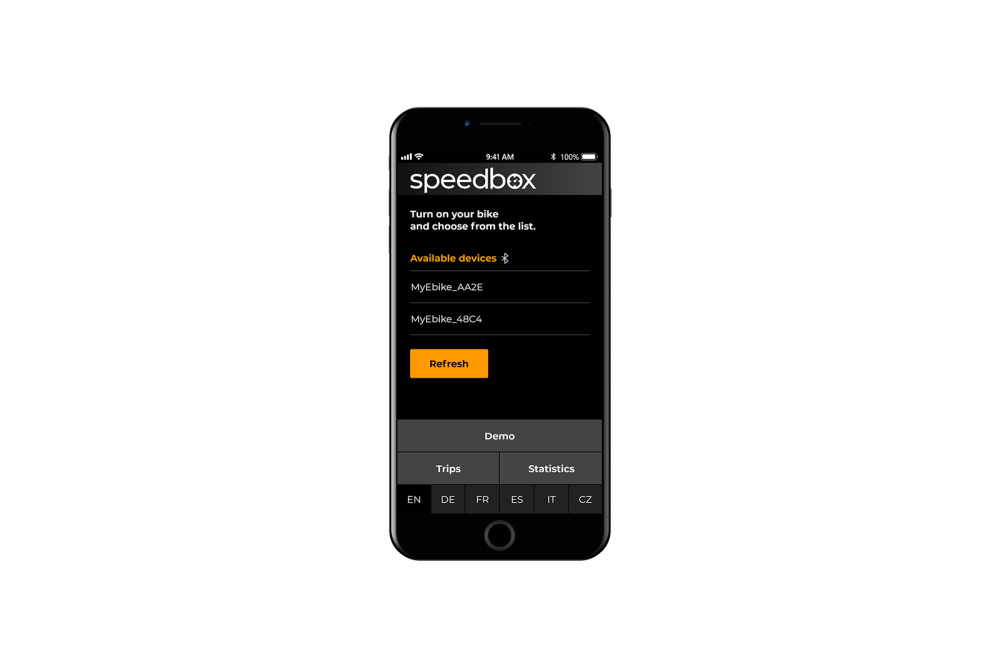

SpeedBox App specifically designed for SpeedBox B.Tuning uses Bluetooth technology to connect your e-bike to your mobile phone. After downloading the application and connecting your phone to your electric bike, you can track the current data and riding parameters on your phone. You can save your trips, compare them with friends and monitor your own performance, so just enjoy the ride to the fullest and leave checking the parameters for later!

Main Features

SpeedBox B.Tuning chip can be used even without the SpeedBox App. However, it is a great accessory that will give you a complete overview of your performance. Most sport apps use only rough estimates of values. That’s why these data may differ from the real electric bike data by up to 20%. SpeedBox App displays completely accurate data, which is read directly from the electric bike's control unit.

Download now on: Google Play · App Store
