SpeedBox 1.2 B.Tuning for Shimano (E8000, E7000, E6100, E5000)

Derestrict your e-bike to reach maximum speeds!

Compatible with E8000, E7000, E6100, E5000 motors.

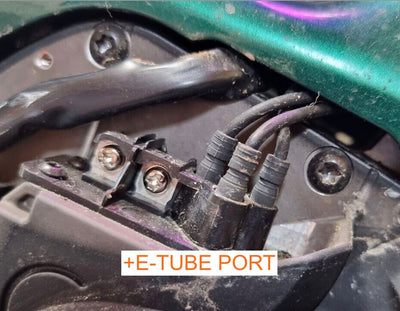

The "+ e-tube port" variant is intended for e-bikes without a free e-tube port. Usually e-bikes with one of these parameters:
Satellite System On/Off switch;
DI2 (electronic gear shifting system).

Regular price£275.00
/

&Free Delivery Worldwide

Please select an option:

Style

GO FROM CAPTAIN SLOW OF YOUR CYCLING GROUP TO JIMMY JET!

- TOM E.

free shipping FREE SHIPPING WORLDWIDE
warranty LIFETIME WARRANTY
easy to install EASY TO INSTALL

Protect your bike with Bikebac tracker!

Protect your bike with Bikebac tracker!

Bike Tracking Made Easy — BikeBac is an Bluetooth Low Energy (BLE) tracker designed exclusively for iPhone users, offering real-time location tracking, theft alerts, and seamless integration with your smartphone. Its compact design fits discreetly onto your bike, providing continuous monitoring and peace of mind wherever you ride.

IP67 Waterproof & Durable
No Subscription Fees
1 Year Battery Life (Replaceable)
Protect your E-Bike only for
£33.00

Main Product Information

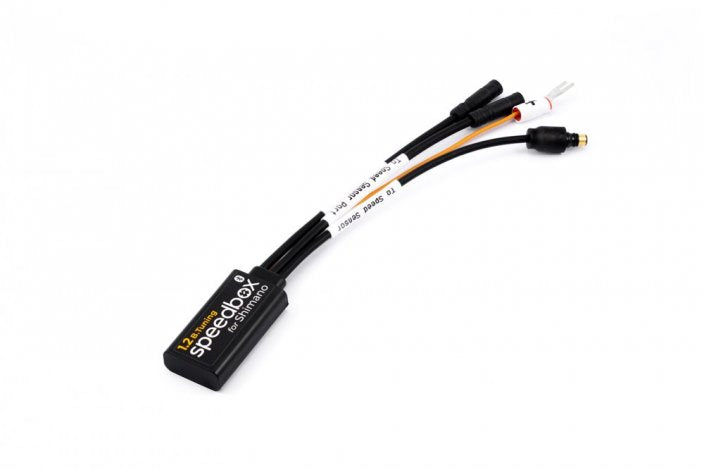

From the ground up redesigned tuning chip for your e-bike with a Shimano motor – with a new design, completely new hardware and firmware, and Bluetooth technology to connect your e-bike with a mobile app.

SpeedBox 1.2 B.Tuning offers a unique connection between your e-bike and mobile phone. This tuning chip is a top-notch product perfectly optimized for the most powerful ride and experience. It suppresses the speed limiter so you can enjoy your ride at unlimited speed. After pairing with the SpeedBox App mobile application, you will see real riding data on your phone’s display. You may also set the speed limit of your own choice. Monitor and store all the parameters of your trip on the display of your phone in any place, anytime.

The tuning kit manipulates the speed signal without altering the motor's power relative to pedaling speed. This guarantees a smooth motor control without speed limit interruptions. Depending on a tuning kit, some determine when assistance stops, while others remove the restriction entirely for continuous support. However, the achievable speed mostly depends on the eBike model. Achievable speed can be calculated using a simple formula:

Speed = Cadence [rpm] * Wheel circumference [mm] * Front Chainring Teeth / Rear Chainring Teeth * 60 [min/h] / 1.000.000 [mm/km]

The SpeedBox 1.3 tuning chip enables you to suppress the speed limiter on your electric bike. This unlocks the power of the Shimano motor, allowing you to achieve unlimited speed. When in use, the actual speed will appear on your display up to 14 mph (23 km/h).

The manufacturer recommends keeping the maximum speed for Giant models up to 21-22 mph (35 km/h).

To see the correct speed and all riding data during your ride, refer to the SpeedBox App on your smartphone.



This tuning chip is very easy to control - via mobile app or by turning on/off the lights. If the lights are turned off, SpeedBox is activated. The chip can be easily deactivated by turning on the lights. A new feature in this SpeedBox version is the possibility of activating the double-click function in the app. By activating this function, the lights become independent of tuning. By double-clicking on the LIGHT button, the lights will flash, and the tuning will turn on. If you double-click on the button again, the tuning will turn off and the e-bike will work the same as without a chip.

You can set the preferable maximum speed limit in the app.

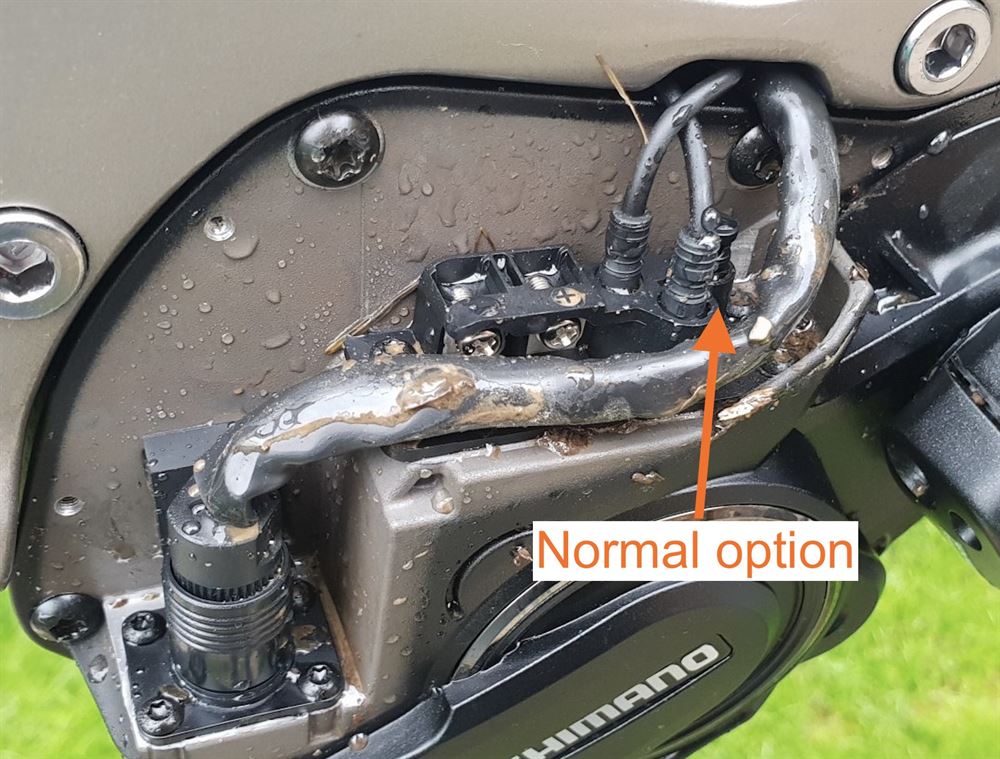

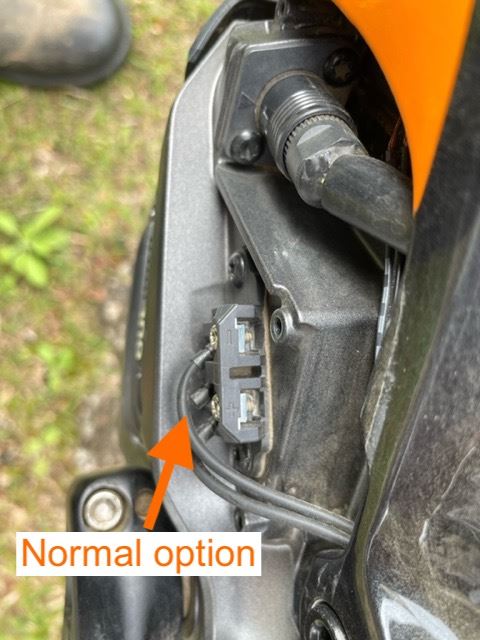

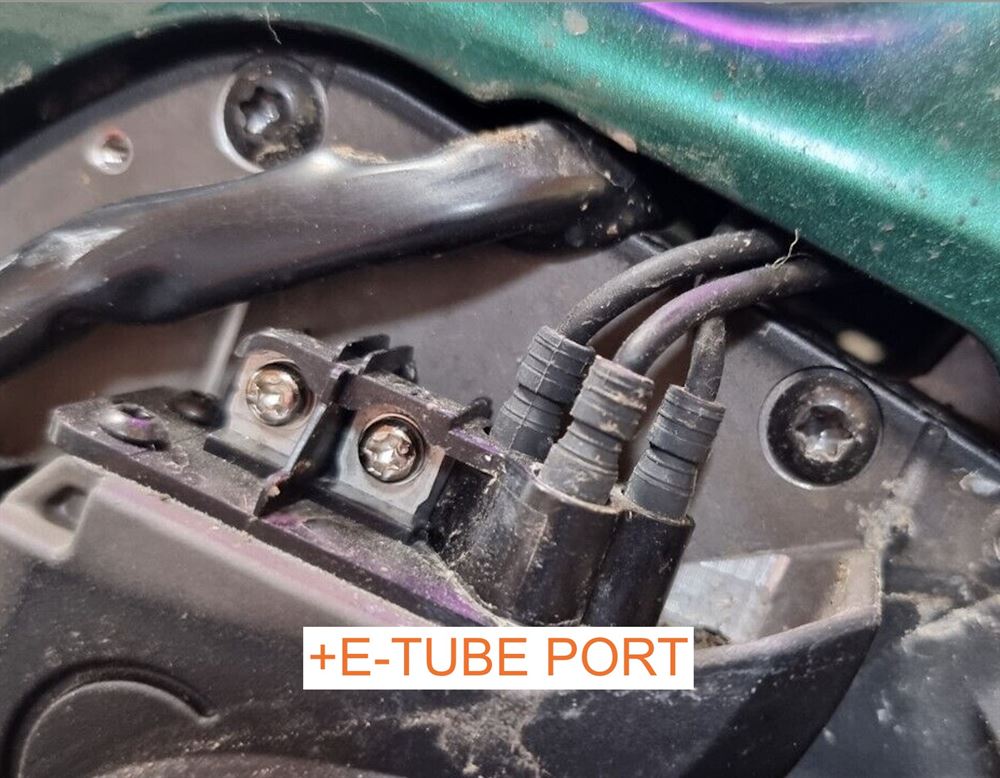

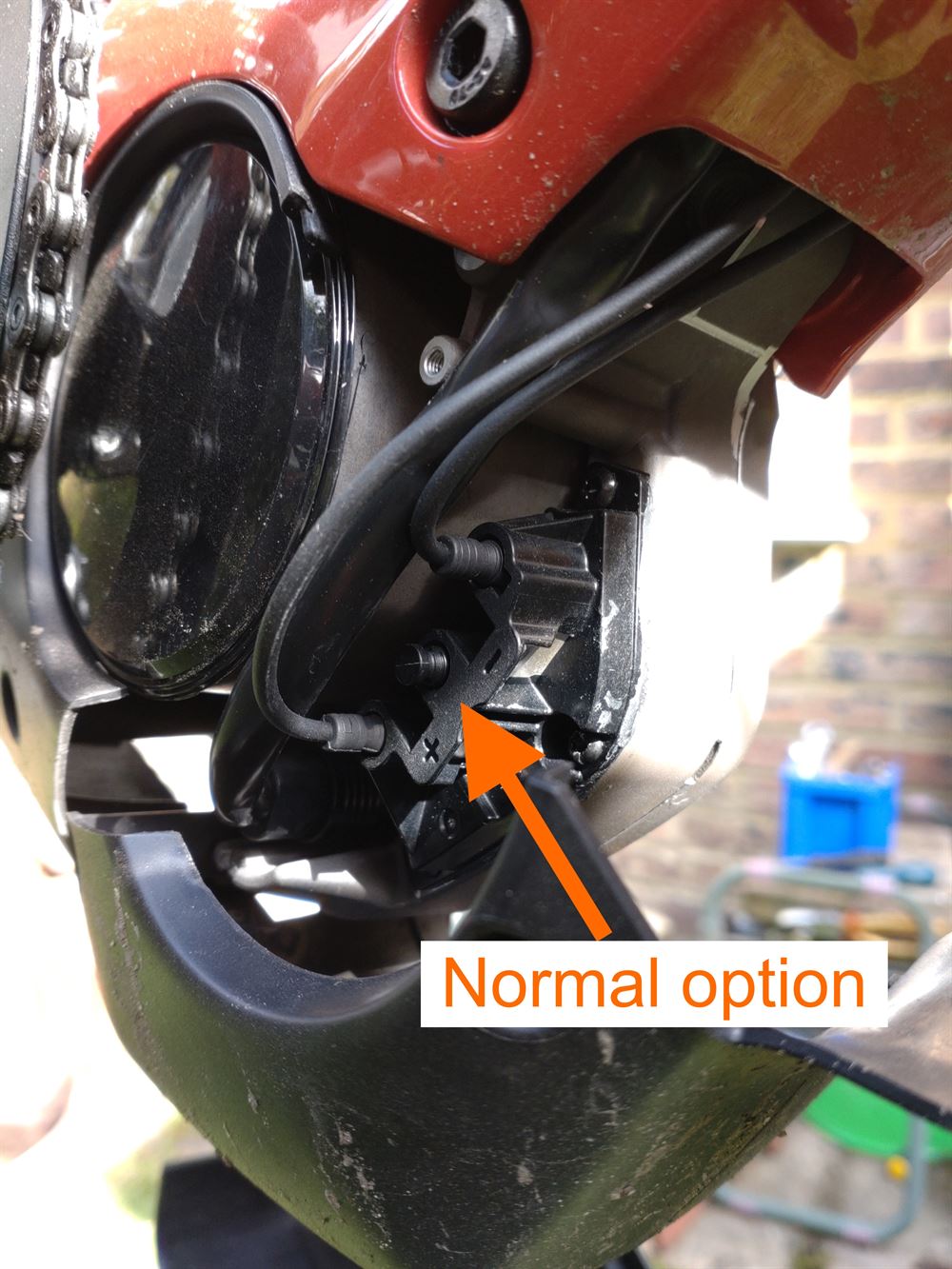

Compared to previous versions, this new product also plugs into the engine's E-Tube port. It is therefore necessary that the e-bike motor in which you are going to install the new version of SpeedBox for Shimano has one free E-Tube port. In case you do not have a free E-Tube port in the motor, please select “+E-Tube Port” variant. It is highly recommended to open the motor and refer to product pictures if you are uncertain about the situation under the cover.

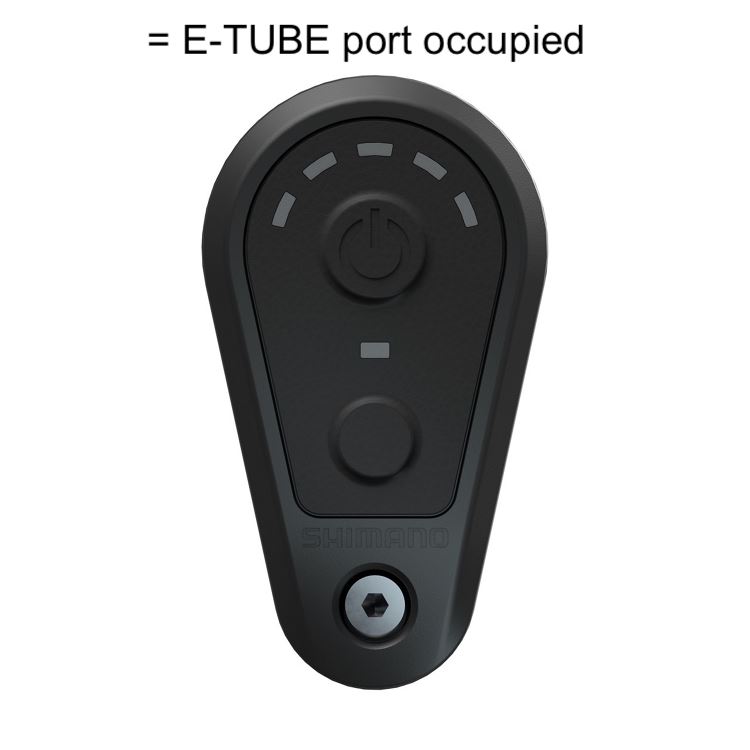

E-bikes, which do not have a free E-Tube port, are usually those with a Di2 electronic gear shifting system, or with a tube integrated Satellite System ON/OFF Switch (EW-SW100, EW-SW300).

This tuning kit is not compatible with EP8 motors. You would need Speedbox 1.3 for Shimano EP8

This tuning kit is not compatible with EP801 and EP6 motors. You would need Peartune for Shimano EP801 and EP6 motors.

We use original connectors for the production of SpeedBox chips ensuring that the installation process is very simple and the chip is connected properly. We have also prepared detailed instructions and videos to make installation easy for you. Disassembly of the tuning chip is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.
If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 1 km before the chip is activated.

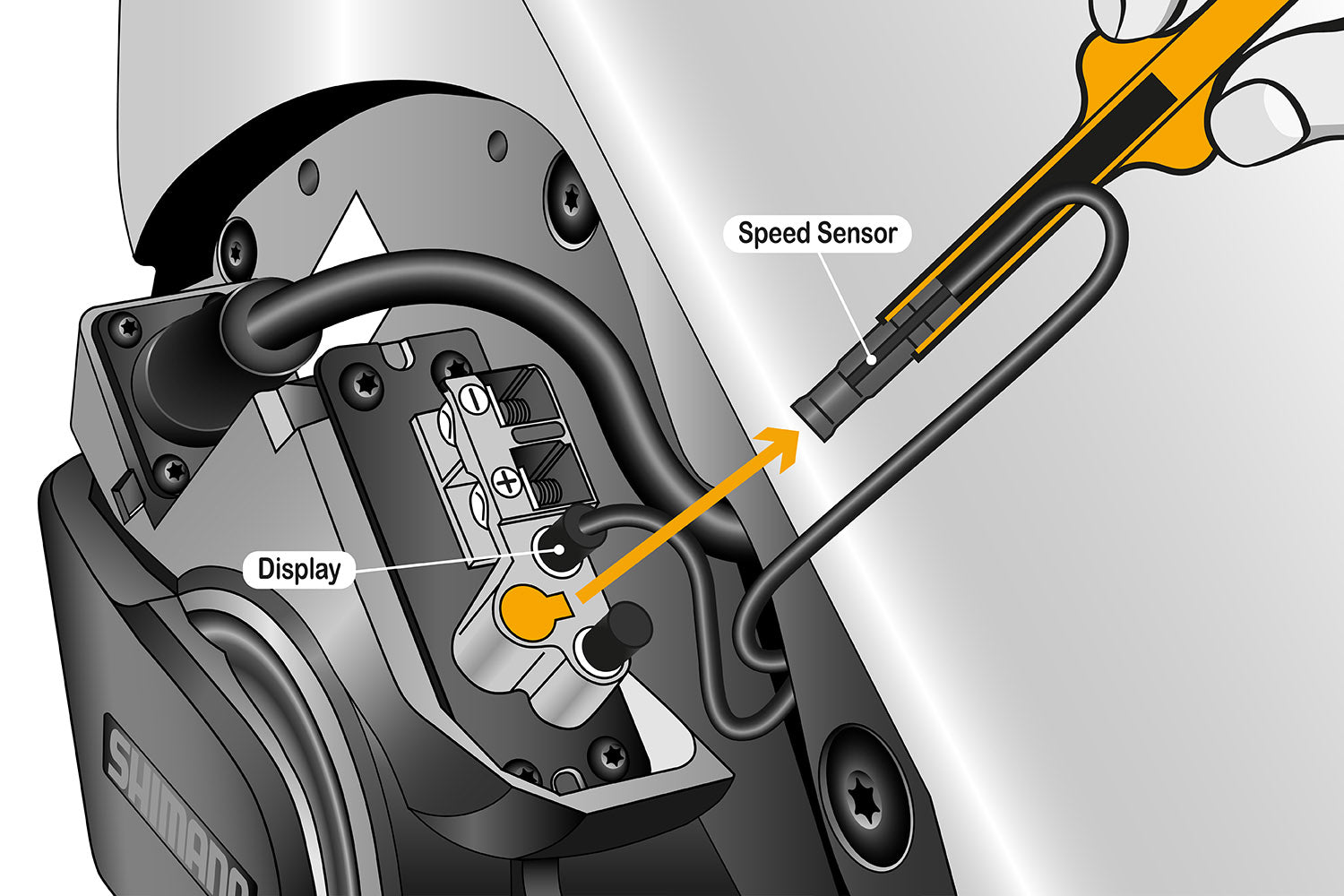

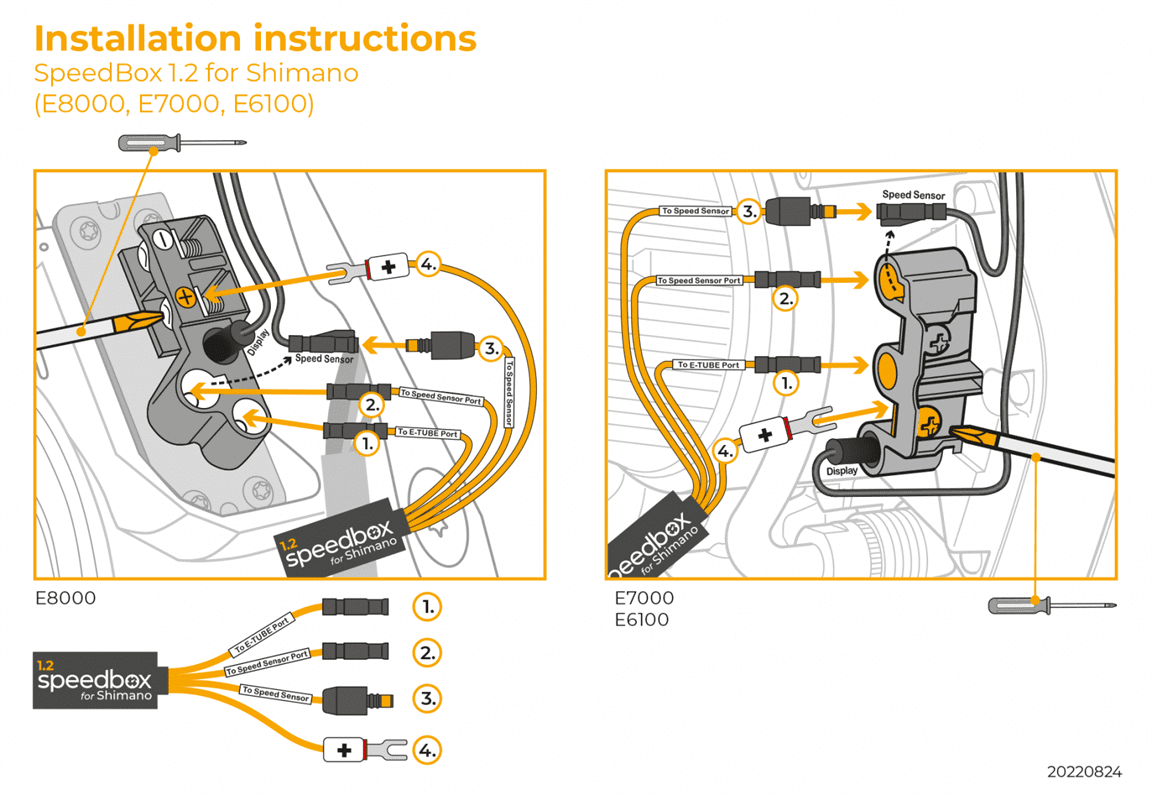

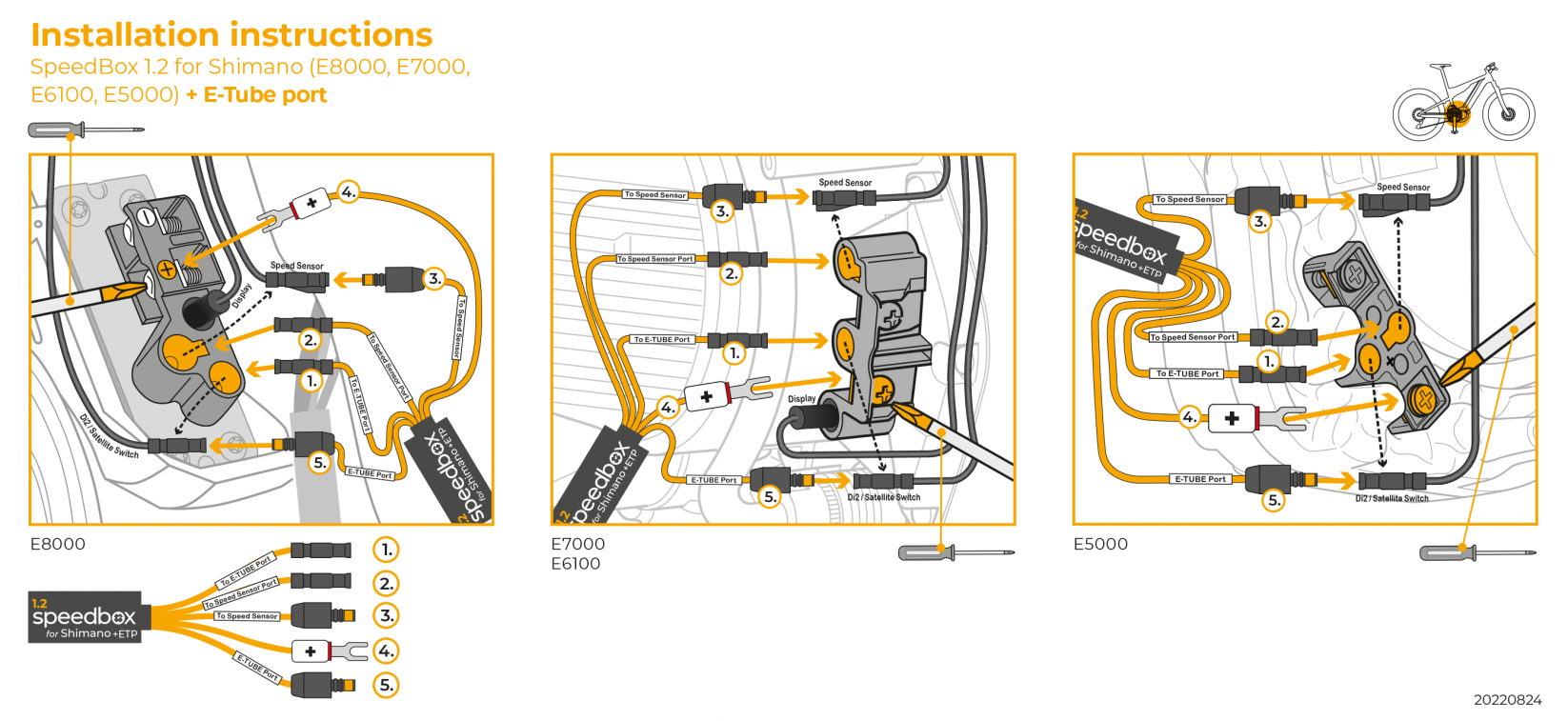

Installation Guide:

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one’s own risk.

The use of SpeedBox may void the warranty of your ebike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

SpeedBox Products are thoroughly tested and we stand by their quality. SpeedBox provide Life Long warranty to all their Products!

If You have any questions, please do not hesitate to contact us. Thank you for looking! Two Wheels Empire Team

Warranty does not cover damage resulting from eBike software updates. Remove the tuning kit before updating the software. Check with us first to ensure the kit is compatible with your updated eBike. We cannot guarantee that the kit will function the same after updates. Please exercise caution. If your Speedbox tuning kit needs updating due to updated eBike software, please contact us at hi@twowheelsempire.com. Preliminary costs are 59€ + shipping costs.

SpeedBox App specifically designed for SpeedBox B.Tuning uses Bluetooth technology to connect your e-bike to your mobile phone. After downloading the application and connecting your phone to your electric bike, you can track the current data and riding parameters on your phone. You can save your trips, compare them with friends and monitor your own performance, so just enjoy the ride to the fullest and leave checking the parameters for later!

Main Features

  • Tuning Control - Changes the e-bike's speed limit from 25 km/h to unlimited mode.
  • Tuning Invisible Mode (excluding Shimano) - Once you activate this mode, you won't be able to activate tuning with the walk/light button on your electric bike anymore
  • Motor Lock System (excluding Shimano and Yamaha PW-X3 with Interface X display) - You can temporarily turn off the electric bike's motor in your mobile app to add another level of security to your lock.
  • Storing your e-bike’s ride data - Well-arranged database of your trips to monitor your own performance or compare it with friends.
  • Motor Diagnostics - Displaying real e-bike technical data on your mobile phone

SpeedBox B.Tuning chip can be used even without the SpeedBox App. However, it is a great accessory that will give you a complete overview of your performance.

Most sport apps use only rough estimates of values. That’s why these data may differ from the real electric bike data by up to 20%. SpeedBox App displays completely accurate data, which is read directly from the electric bike's control unit.

Download now on:

Compatible with E8000, E7000, E6100, E5000 motors

Unlock the full potential of your ebike!

  • You will ride faster and experience the thrills of owning a derestricted ebike -you will love the difference!
  • Install it effortlessly- quick plug-and-play connection - no setup required.
  • Feel safe for your e-bike and warranty- it's safe for ebike and undetectable to keep your warranty safe!

SpeedBox 1.2 B.Tuning for Shimano (E8000, E7000, E6100, E5000)
SpeedBox 1.2 B.Tuning for Shimano (E8000, E7000, E6100, E5000)

Quick plug-and-play installation. No setup!

  • Increase the speed limiter from original 16 mph (25km/h) to unlimited speed
  • Enjoy it always ON or enable/disable when needed
  • Get full control of your tuning kit from the Speedbox App
  • Get after-sales support from us and lifetime warranty from Speedbox!
