Main Product Information
Tuning kit for e-bikes with Bafang M200 M410 M500 M510 motors.
SpeedBox 3.2 B. Tuning enables you to double the speed limit of an e-bike from the original 16 mph (25 km/h) to 31 mph (50 km/h). After the tuning is installed, your e-bike’s display will show real data, such as maximum and average speeds, daily mileage and cruising range.
The tuning kit manipulates the speed signal without altering the motor's power relative to pedaling speed. This guarantees a smooth motor control without speed limit interruptions. Depending on a tuning kit, some determine when assistance stops, while others remove the restriction entirely for continuous support. However, the achievable speed mostly depends on the eBike model. Achievable speed can be calculated using a simple formula:
Speed = Cadence [rpm] * Wheel circumference [mm] * Front Chainring Teeth / Rear Chainring Teeth * 60 [min/h] / 1.000.000 [mm/km]
The tuning kit can be activated directly on your bike’s display. After pressing the LIGHT button or +-+-, a value of 99 km/h (62 mph) is displayed and from now on you will be able to ride at an unlimited speed.
To deactivate the tuning kit, press the LIGHT button or +-+- again. The value of 25 km/h (16 mph) will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the chip.
You can set the maximum speed of an electric assistance by changing modes by switching modes three levels down and then three levels up. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by pressing LIGHT button shortly or by turning the rear wheel 360°. The last displayed limit will be saved after 5 seconds of inactivity.
This tuning kit is compatible with motors:
- Bafang Max Drive M200 M410 M500 M510
Not compatible with:
- Bafang Max Drive M300
- Bafang Max Drive M400
- Bafang Max Drive M420

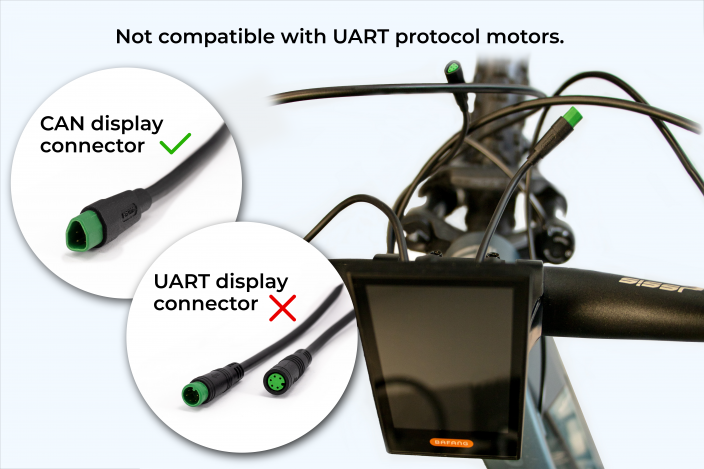

- Displays with UART connectors
In case of updating the software of your e-bike, uninstall SpeedBox from the e-bike first, update the software and reinstall SpeedBox.

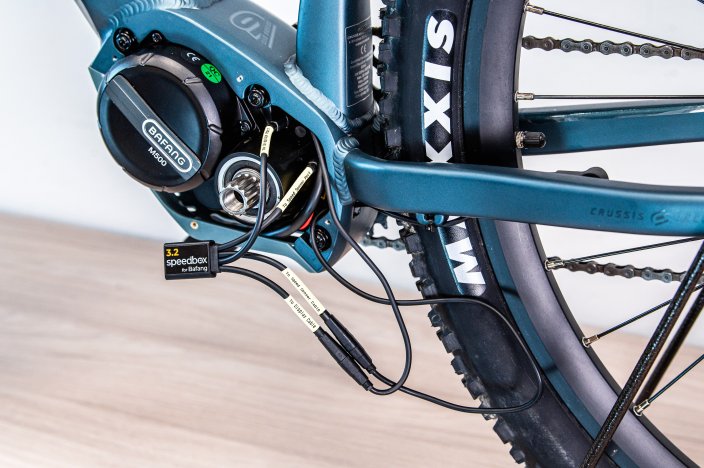

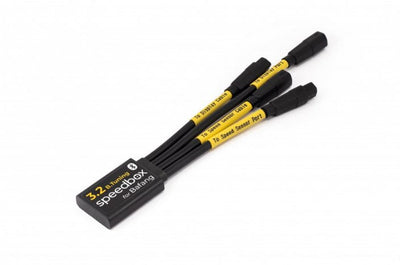

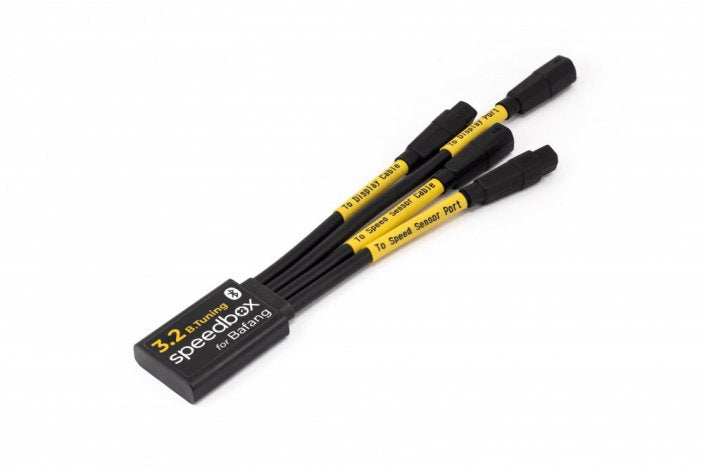

We use original connectors for the production of SpeedBox chips ensuring that the installation process is very simple and the chip is connected properly. We have also prepared detailed instructions and videos to make installation easy for you. Disassembly of the tuning chip is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.
If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 0.6 miles (1 km) before the chip is activated.
Installation Guide:
Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one’s own risk.
The use of SpeedBox may void the warranty of your ebike.
We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.
SpeedBox Products are thoroughly tested and we stand by their quality. SpeedBox provide Life Long warranty to all their Products!
If You have any questions, please do not hesitate to contact us. Thank you for looking! Two Wheels Empire Team
Warranty does not cover damage resulting from eBike software updates. Remove the tuning kit before updating the software. Check with us first to ensure the kit is compatible with your updated eBike. We cannot guarantee that the kit will function the same after updates. Please exercise caution. If your Speedbox tuning kit needs updating due to updated eBike software, please contact us at hi@twowheelsempire.com. Preliminary costs are 59€ + shipping costs.

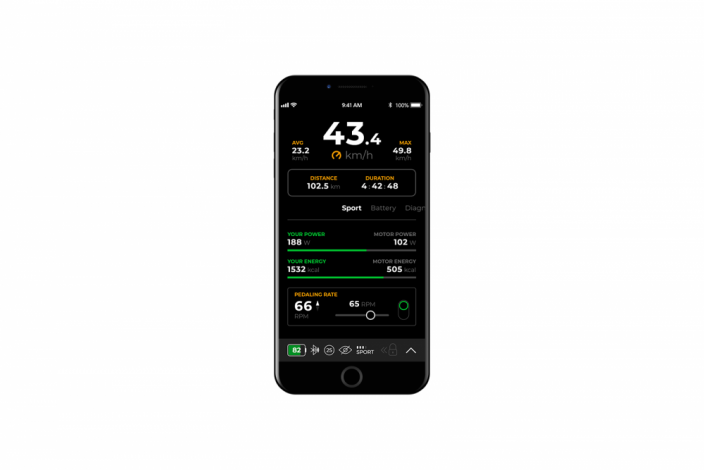

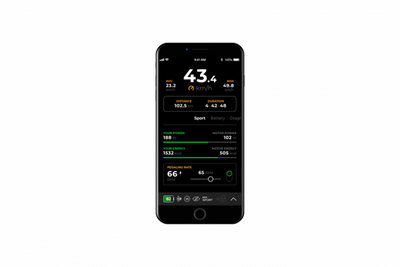

SpeedBox App specifically designed for SpeedBox B.Tuning uses Bluetooth technology to connect your e-bike to your mobile phone. After downloading the application and connecting your phone to your electric bike, you can track the current data and riding parameters on your phone. You can save your trips, compare them with friends and monitor your own performance, so just enjoy the ride to the fullest and leave checking the parameters for later!
Main Features
- Tuning Control - Changes the e-bike's speed limit from 25 km/h to unlimited mode.
- Tuning Invisible Mode (excluding Shimano) - Once you activate this mode, you won't be able to activate tuning with the walk/light button on your electric bike anymore
- Motor Lock System (excluding Shimano and Yamaha PW-X3 with Interface X display) - You can temporarily turn off the electric bike's motor in your mobile app to add another level of security to your lock.
- Storing your e-bike’s ride data - Well-arranged database of your trips to monitor your own performance or compare it with friends.
- Motor Diagnostics - Displaying real e-bike technical data on your mobile phone
SpeedBox B.Tuning chip can be used even without the SpeedBox App. However, it is a great accessory that will give you a complete overview of your performance.
Most sport apps use only rough estimates of values. That’s why these data may differ from the real electric bike data by up to 20%. SpeedBox App displays completely accurate data, which is read directly from the electric bike's control unit.
Download now on:
Unlock the full potential of your ebike!
- You will ride faster and experience the thrills of owning a derestricted ebike -you will love the difference!
- Install it effortlessly- quick plug-and-play connection - no setup required.
- Feel safe for your e-bike and warranty- it's safe for ebike and undetectable to keep your warranty safe!
Quick plug-and-play installation. No setup!
- Increase the speed limiter from original 16 mph (25km/h) to 31mph (50kmh)!
- See accurate speed on your ebike display!
- Enable/disable when needed! Just press the LIGHT button or +-+- or via Speedbox App
- Get after-sales support from us and lifetime warranty from Speedbox!
The bike feels completely different once derestricted - it's just like a whole different bike! The rides are so much more fun now! Tuning kits are safe to your bike and every ebiker should have one installed! You will love riding your ebike with it - guaranteed!
