SPEEDi for Focus Sam2 (2022)

Derestrict your eBike to increase speed limit by 1.5 times

Installation Guide

Preorder only - dispatch after 3-4 weeks

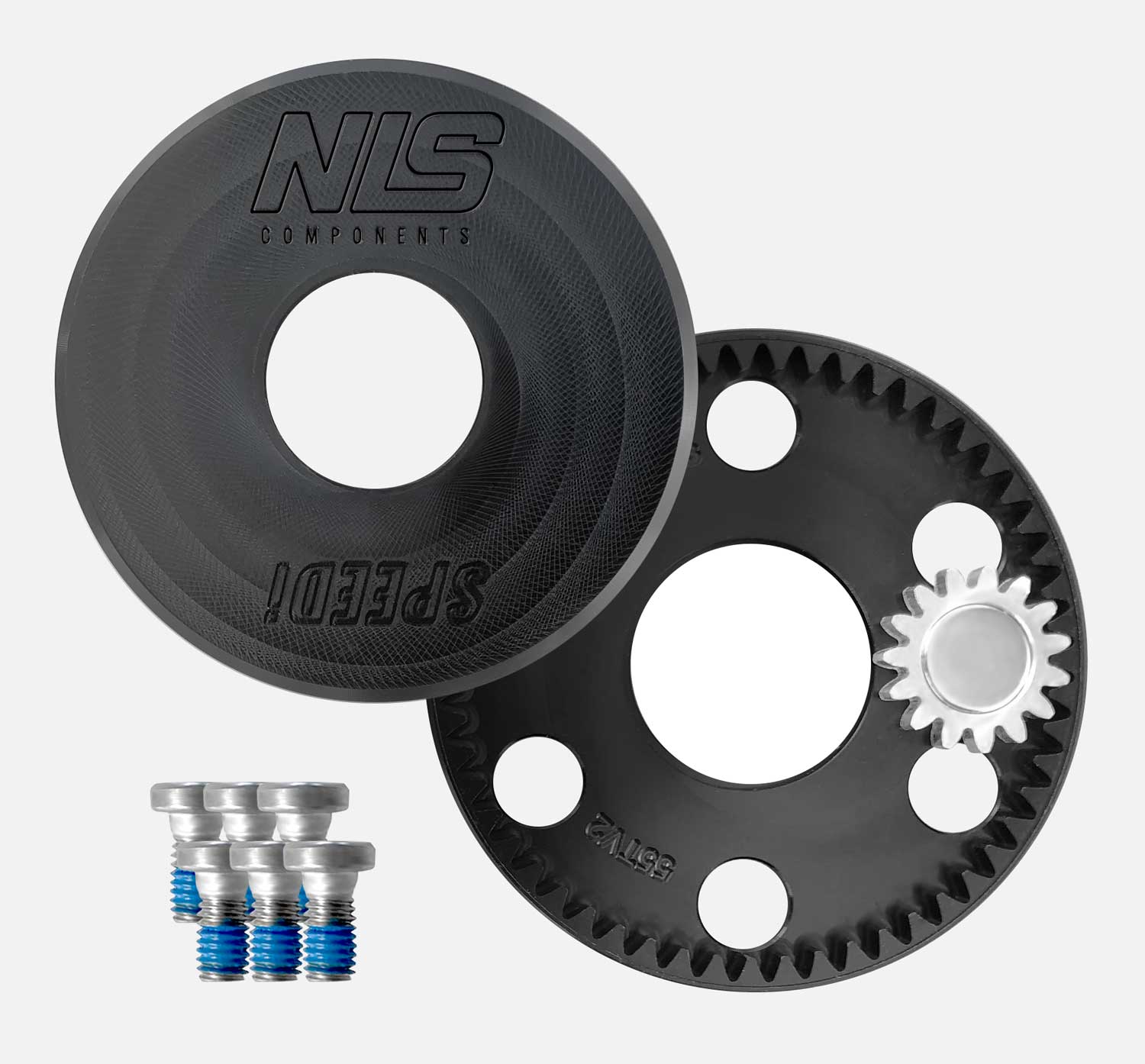

The SPEEDi is an e-bike speed limit increaser. Designed, tested and manufactered in New Zealand, our SPEEDi uses a mechanical planetary gear system to increase your standard e-bike speed limit by 1.5.

Please note that the SPEEDi is very specific to the chosen Bike, Hub and Disc setup. Please don't assume that because your bike is similar it will fit, as it likely won't. If you're not 100% sure, please contact us.

Please refer to the Hub picture before ordering.

This SPEEDi is for:
Bike: Focus Sam2 (2022)
Hub: Novatec D162SB-SL-B12 or DT Swiss H1900 center lock hub
Disc:Centerline 6 bolt or Centerlock

Regular price£119.00
/

&Free Shipping Worldwide

Please select an option:

Hub
You can save money when buying more than one tuning kit. Can be combined with other brand/type tuning kits!
Buy 2 save £3.57
£119.00 £115.43
Buy 3 save £8.33
£119.00 £110.67

GO FROM CAPTAIN SLOW OF YOUR CYCLING GROUP TO JIMMY JET!

- TOM E.

free shipping FREE SHIPPING WORLDWIDE
warranty 1 YEAR WARRANTY
easy to install EASY TO INSTALL

Main Product Information

To make it silent, take your time to read the installation instructions thoroughly as it has simply been pushed on too hard, causing too much friction between the cover and backing plate, we aim for a very slight gap between the components. Please note that it's normal to have a little bit of noise in the beginning while things bed in. This will go away after the first ride. Do not add any lubricant to lessen the noise. Lubricant will just gunk it up and attract contaminants.

We highly recommend not applying any form of lubricant on the unit, as the Acetal plastic is self lubricating, any lubricant will just gunk it up and attract contaminants.

The SPEEDi is made from Acetal plastic which is self lubricating, which means you don't need to add any lubricants (see above)

Generally, there is no need to clean the SPEEDi. When installed correctly, the tight seal tolerances keep out most dirt and water - there may be some very fine particles that get in, but these shouldn't affect performance. There's no harm in opening it up once in a while to make sure it's looking good and clean it up, but it's not required.

1. Remove the rear wheel.

2. Clean the disc and end cap from all contamination.

3. Remove the 6x disc bolts and magnet and set aside (somewhere safe).

4. Place the disc onto the hub, then the Backing Plate on to the disc, then install 6x new Bolts to 5-6nm with Blue Threadlocker.

(if your bike uses the Shimano black aluminium disc with 3x bolt anti-rotate shims, re-install these shims) IMPORTANT Make sure the heads of the bolts are BELOW the surface of the Backing Plate.

5. Place the Magnet inside the Backing Plate and engage the teeth.

6. Take your time during the final install, make sure everything is very clean for a long and prosperous life.

7. For silent operation we aim to leave a .1mm gap between the Cover and the Backing Plate:

7.1 Gently press the Cover onto the end cap with thumb pressure only, rotating as you go. This is supposed to be a very tight fit, so will take some pressure to get it on. WARNING! Press as close to the center as possible, do not put ANY pressure on the outer edge of the cover OR hit it with any tool, or it will break.

7.2 HOT TIP - soak the Cover in hot water (not boiling) for 10 seconds, this makes the plastic slightly larger and more malleable.

7.3 As the Cover engages the last 2mm, the teeth need to line up so you will need to rotate the Cover slightly to allow easy engagement. Using a socket that fits over the axle and gently pressing it with your palm is a good way to install easily, be careful not to press it on too hard though, as this will likely make it noisy.

7.4 Continue to press the Cover closer until you see a very small gap of around .1mm between the Backing Plate and Cover. You can test how close it is by pushing the outer edge of the Cover toward the Backing Plate and seeing how much it moves.

8. Rotate the axle to make sure it spins freely and perfectly straight. Try pressing the hub end cap toward the hub and rotating, listening for excessive noise, as the wheel bearings may have play in them that can affect the offset when the axle is done up tight.

9. There may be some slight plastic on plastic noise as the sealing faces gently touch each other, make sure this noise is not excessive, if anything sounds or feels off, pry it off completely (see uninstallation below) and re-install.

10. Install the wheel gently into the frame, careful not to impact the unit or sensor.

11. When tightening the axle - make sure there is always a slight gap between the unit and the sensor/frame at all times.

12. Please note that for the first 5 minutes of use the unit may make some groovy noise, this is normal and will run smooth and silently after its initial bedding in. If it continues to make excess noise, try uninstalling (see below) and reinstalling following Step 7 closely.

Installation Video

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use of NLS products. Electric bikes equipped with NLS products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with NLS products can be used exclusively on private property and entirely at one’s own risk. The use of NLS products may void the warranty of your ebike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

NLS products are thoroughly tested and we stand by their quality - NLS provides 1 year warranty to all their products.

Warranty does not cover damage resulting from eBike software updates. Remove the tuning kit before updating the software. Check with us first to ensure the kit is compatible with your updated eBike. We cannot guarantee that the kit will function the same after updates. Please exercise caution.

Unlock the full potential of your ebike!

  • You will ride faster and experience the thrills of owning a derestricted ebike - you will love the difference!
  • Install it effortlessly - easy and fast installation!
  •  Feel safe for your e-bike and warranty- it's safe for ebike and undetectable to keep your warranty safe!

SPEEDi for Focus Sam2 (2022)
SPEEDi for Focus Sam2 (2022)

Quick and Easy installation!

  • No interference with electrical components! Mechanical tuning!
  • Fully undetectable!
  • Get after-sales support from us and 1 year warranty from NLS
