Levociraptor

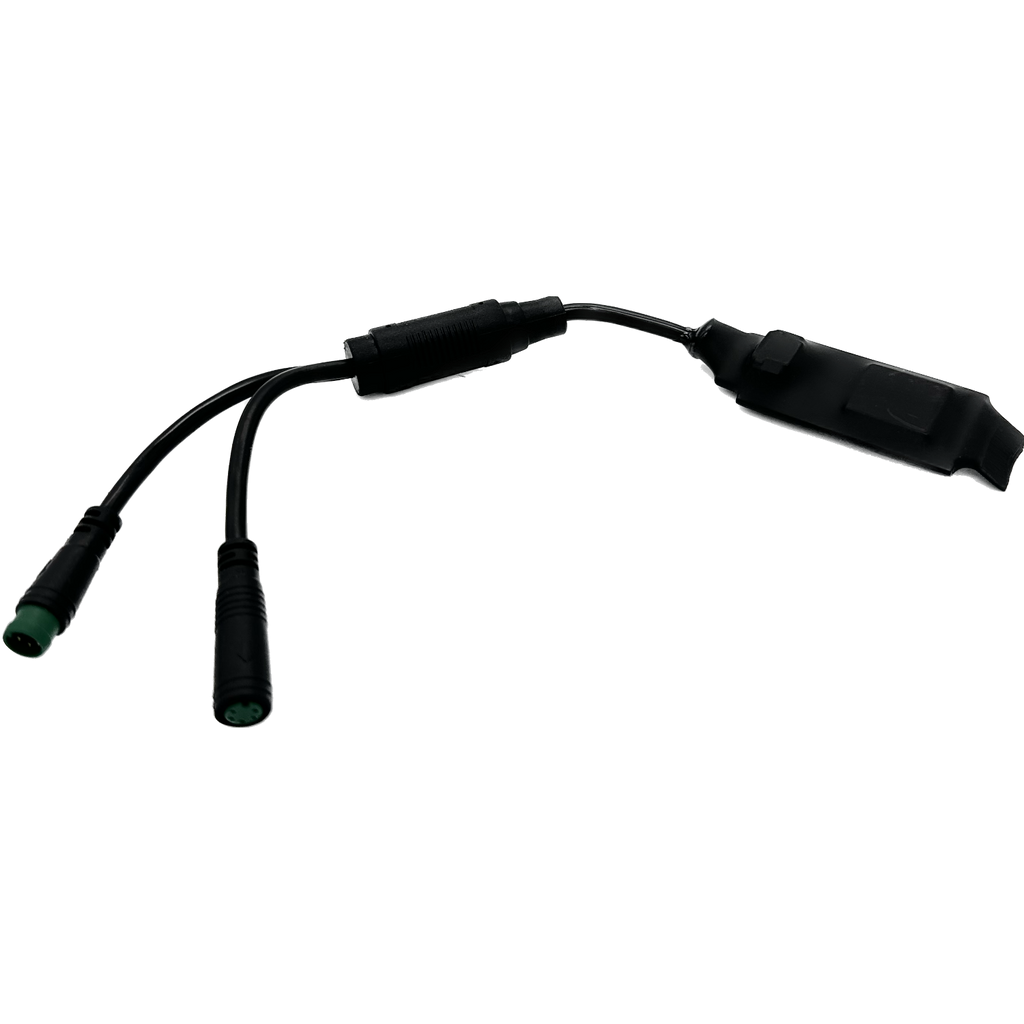

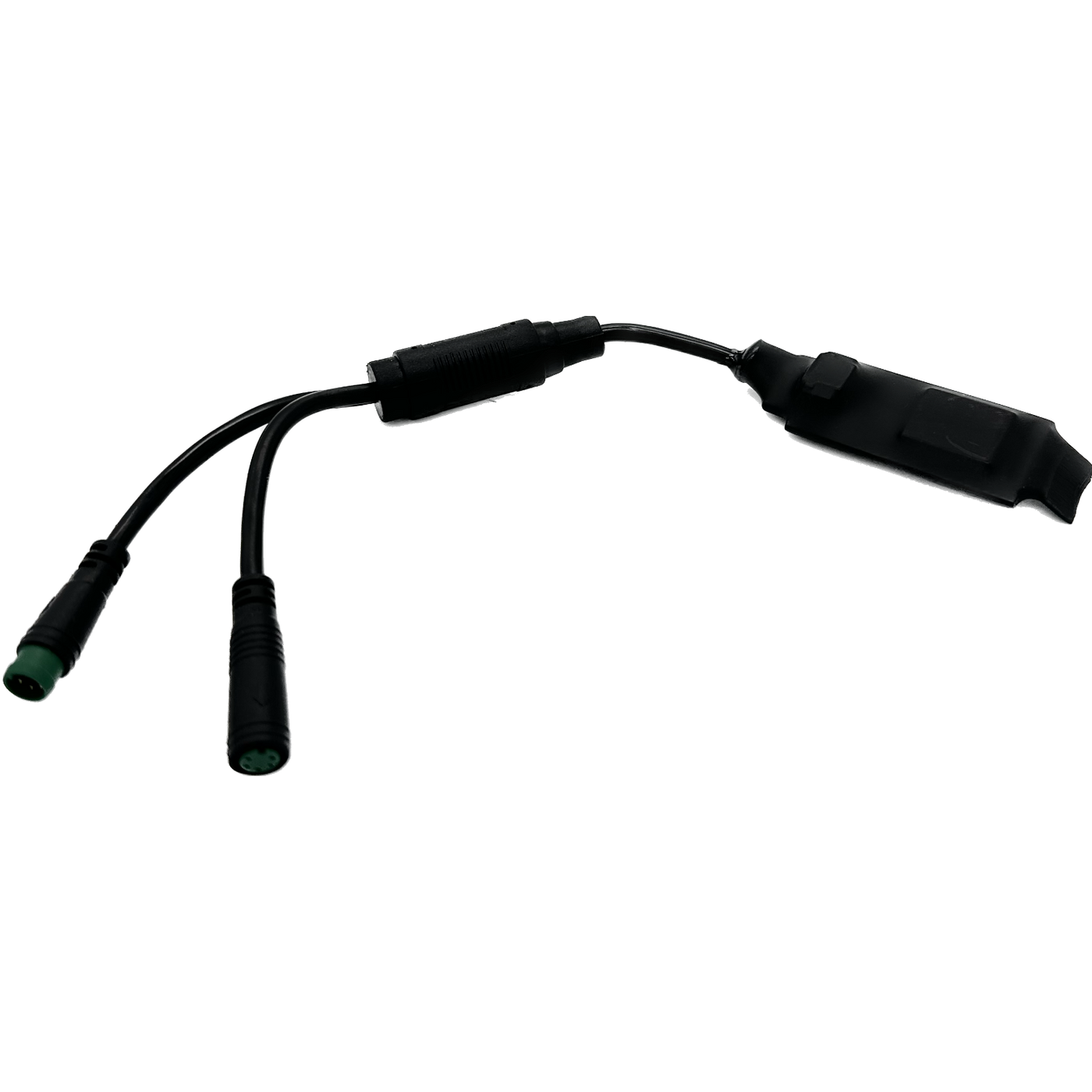

Levociraptor BROSE Specialized Gen2 for Levo SL, Creo SL & Vado SL Gen3 2022 with Bluetooth

Name: Levociraptor BROSE Specialized Gen2 for Levo SL, Creo SL & Vado SL Gen3 2022 with Bluetooth
Brand: Levociraptor
SKU: TWE-LC-Gen2
Price: 16999 GBP
Availability: InStock

£169.99

Product features

Removes speed limits up to 54 mph (86km/h).

- From now on you will be able to ride even at a speed over 25mph (40km/h), 30mph (50km/h) and even more than 37mph (60 km/h) - as much as you can pedal!

Tuning kit is always active after installation.

- The Levociraptor connects to your eBike via the TCU and speed calibration within BLEvo app allows you to retain accuracy of speed and distance.

Easy Installation

- Levociraptor Brose Specialized Gen2 Tuning Kit comes complete with a manual. The installation of the Levociraptor tuning kit is quite simple and can be easily done by technical laymen. Out of sight installation under the TCU inside the frame.

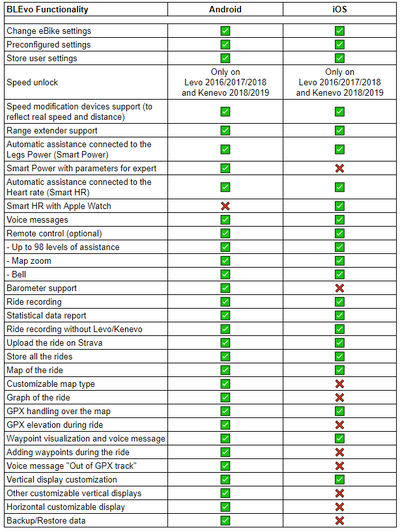

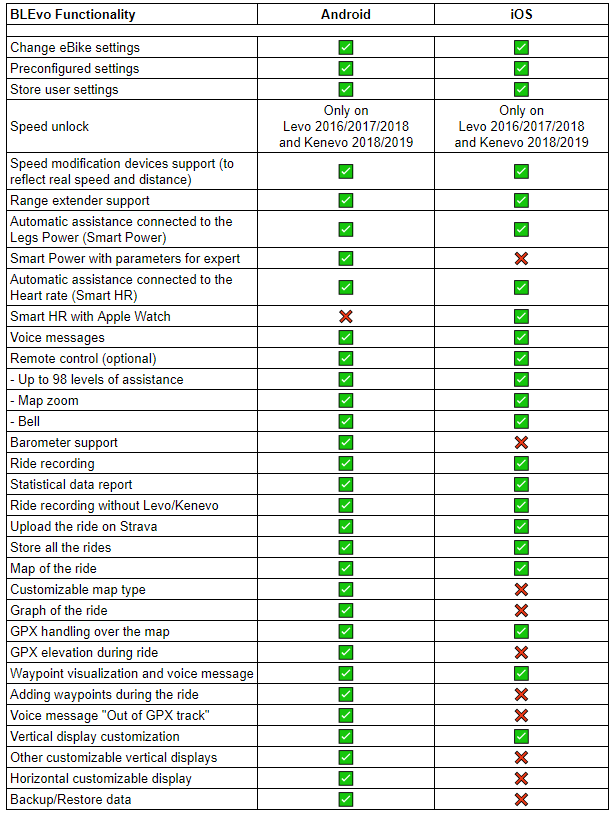

Available features with BLEvo app

- 5 different speed limits selectable via Bluetooth with dedicated free App or BLEvo.

- Barometer for altitude calculation and Thermometer for logging ambient temperature.

- Crash detection with message notification with GPS position.

- Automatic restore of the speed restriction after crash.

- Firmware updatable via Smartphone.

If you have any questions regarding the setup please do not hesitate in contacting us, we are happy to help.

Will Levociraptor Brose Specialized Gen2 work with my eBike?

Compatible with:

- Turbo LEVO SL 2020-2021 with 1.1 Brose Specialized motor

- Turbo CREO SL 2020-2021 with 1.1 Brose Specialized motor

- Turbo VADO SL 2020-2021 with 1.1 Brose Specialized motor

If you would like to have a Levociraptor without Bluetooth function for your Brose Specialized Levo SL, Vado SL or Creo SL eBike, you will need this tuning kit

Assembly

We have prepared detailed instructions, which you will receive together with the Tuning kit to make installation easy for you. You will need basic toolkits.

If you have any troubles with installation or disassembly, do not hesitate to contact us.

If You are planning to install Levociraptor on brand-new eBike, make sure you ride it for at least 0.6miles (1km) before the Tuning Kit is activated.

Two Wheels Empire is an official Partner of Levociraptor, buy in confidence from a trusted seller.

Product details

Size - 9.4 in x 0.8 in x 0.4 in (24 x 2 x 1 cm)
Operating voltage - 5-15 V
Max. power consumption - 100 mA / 1.5 W
Weight - Approx. 1.06 oz (30 g)
The voltage within the tuning tool does not exceed 50 V
Warranty - 1 year

Legal

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use of Levociraptor products. Electric bikes equipped with Levociraptor products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with Levociraptor products can be used exclusively on private property and entirely at one’s own risk. The use of Levociraptor may void the warranty of your eBike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

Levociraptor Generation2 - Installation Manual

Note: You are the only responsible for any changes you make or attempt to make to your e-bike. The unlock of the speed limiter in public places such as streets, squares and cycle paths is FORBIDDEN BY THE LAW. Therefore it is possible to activate the unlock in private circumscribed places such as circuits, tracks and private properties. Mounting the device may void the factory warranty of the bicycle. The manufacturer declines all responsibility for any damage caused to pedal assisted bicycles on which the Levociraptor system is mounted. The manufacturer declines all responsibility for damage to persons or things caused or in any way linked to the use of Levociraptor.

In this short document I will show how to mount the Levociraptor device able to change the wheel size on the Levo 2019/2020/2021 or Kenevo 2020/2021, Levo Gen3 2022 especially for the models which have TCU (DISPLAY) with firmware version up to 26.B and motor version up to 7.4.2

For the Levo SL, Vado Sl and Creo SL the modification is compatible up to version 2.C.B0 of the TCU and up to version 41.6.33 of the motor.

1. Switch off the bike and disconnect the battery from the engine.

2. Remove the display on the down tube (called TCU).

3. Disconnect the green connector of the TCU and connect the Levociraptor device. There is only one possibility to connect the connectors.

4. Insert the cables into the Ebike tube, close the TCU and connect the battery cable.

5. Turn the Ebike on, wait 10 seconds and turn the Ebike off.

6.The Levociraptor is already configured in position 4. This means that the speed limit is set to 57km/ht is set to 57.5km/h

7. (Optional) Configure the speed multiplier (Speed x) in BLEvo as selected in the table in order to have the correct display of the KMs done and the speed. The value of the speed limit will be automatically increased according to the selected speed multiplier. At the end, configure the real wheel size.

Note 1: Before returning the bike to service, set the selector to position 1, turn the bike off and on 2 times and remove the Levociraptor device. Then execute the TCU reset procedure (see note 4)

Note 2: To change the wheel size value once installed, just turn off the TCU, remove it from the down tube and change the value of the selector.

Note 3: From position 3 on the selector, Mission Control will always display 2000mm as a wheel size even if a lower value is chosen. This behavior is correct.

Note 4: If the value set by the selector seems to have no effect on the speed limit change, try to reset the TCU and to repeat the operations. There are 2 ways:

1. Try pressing the TCU on/off button for 10 seconds

2. With bike off, press the power button and then hold down the mode change button for 10-15 seconds. Release the mode change button as soon as the battery display drops. The battery display will rise to current charge status and display the active mode. TCU is now reset.

In this video you can see the procedure https://youtu.be/I5RupVhagVc

If Levociraptor is not working, please follow these steps:
- Make sure you have plugged it in correctly.
- Please remove device.
- Switch bike on and ride for a few minutes then turn off bike for 5 minutes.
- Install Levociraptor and then reset TCU twice.
