SpeedBox 3.3 B.Tuning for Yamaha PW-X3 | PW-S2 motors and Yamaha YDX-Moro 05, Moro 07 e-bikes

Compatible with: SpeedBox App
Compatible with motors: PW-X3, PW-S2
Now compatible with e-bikes: Yamaha YDX-Moro 05, Yamaha Moro 07
Not compatible with e-bikes and motors: Yamaha UrbanRush, CrossCore, CrossConnect, Wabash, YDX-Torc

Regular price£265.00
/

&Free Delivery Worldwide

You can save money when buying more than one tuning kit. Can be combined with other brand/type tuning kits!
Buy 2 save £7.95
£265.00 £257.05
Buy 3 save £18.55
£265.00 £246.45

GO FROM CAPTAIN SLOW OF YOUR CYCLING GROUP TO JIMMY JET!

- TOM E.

Tuning kit shows real speed data SHOWS REAL SPEED DATA
This tuning kit ensures that your eBike's display shows accurate real-time speed
unlimited-max-speed-setting UNLIMITED MAX SPEED SETTING
Tuning kit removes all speed limits. Possible to set a preferred range.
on/off activation ON/OFF TUNING ACTIVATION
Once fitted, tuning kit needs to be activated and can be switched OFF/ON at will.
free shipping FREE SHIPPING WORLDWIDE
warranty LIFETIME WARRANTY
easy to install EASY TO INSTALL

Main Product Information

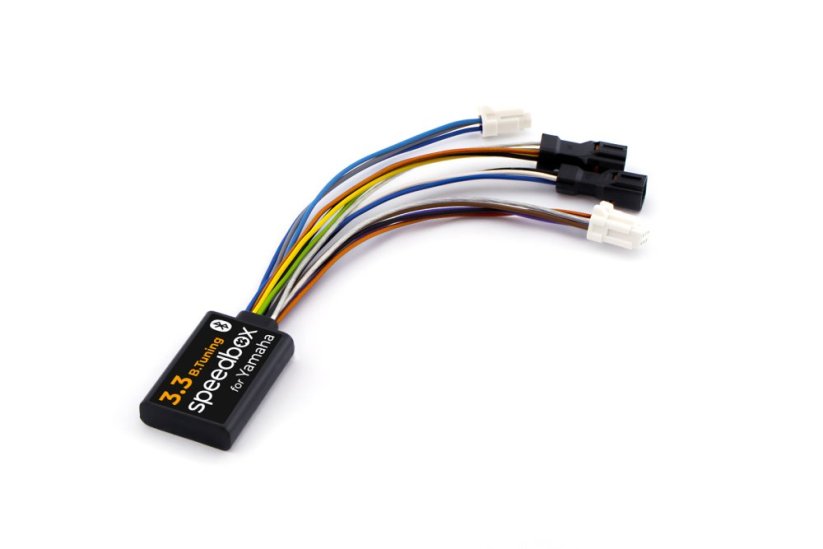

New generation tuning chip with Bluetooth and mobile app for your e-bike
This new product brings a unique connection of e-bike and mobile phone. The SpeedBox 3.3 B.Tuning chip is a top-notch product perfectly optimized for the most powerful ride and experience. It suppresses the speed limiter so you can enjoy your ride at unlimited speed. Thanks to SpeedBox App mobile application you can monitor and store all the parameters of your trip on the display of your phone in any place, anytime.

The tuning kit manipulates the speed signal without altering the motor's power relative to pedaling speed. This guarantees a smooth motor control without speed limit interruptions. Depending on a tuning kit, some determine when assistance stops, while others remove the restriction entirely for continuous support. However, the achievable speed mostly depends on the eBike model. Achievable speed can be calculated using a simple formula:

Speed = Cadence [rpm] * Wheel circumference [mm] * Front Chainring Teeth / Rear Chainring Teeth * 60 [min/h] / 1.000.000 [mm/km]

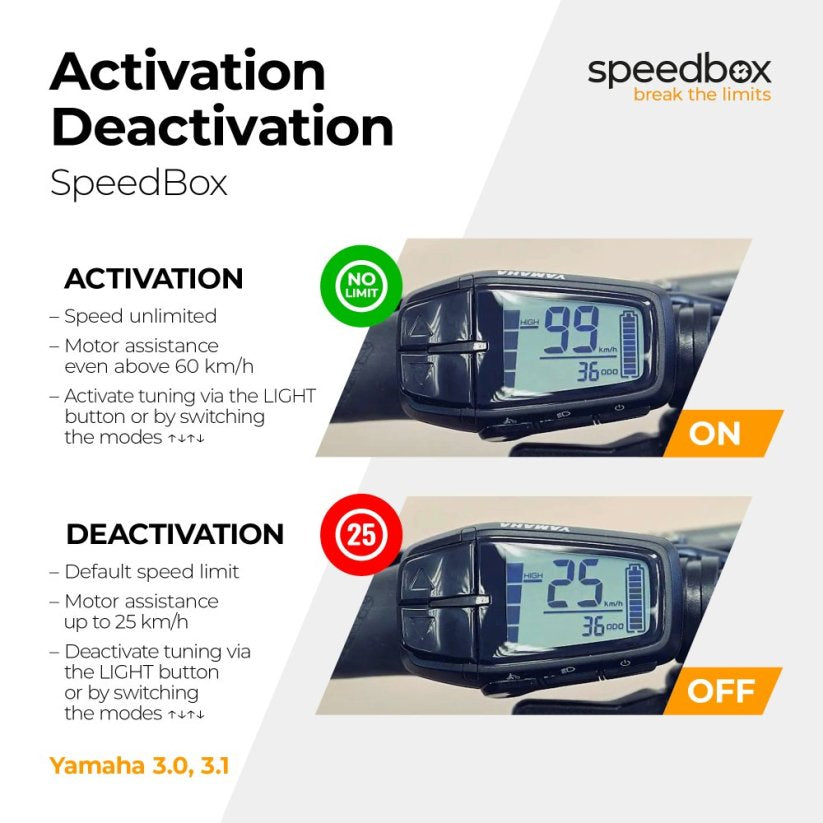

The tuning kit can be activated directly from the mobile application or on your e-bike’s display. After pressing the LIGHT button or ↑↓↑↓, a value of 9.9 km/h (6.2 mph) is displayed and from now on you will be able to ride at an unlimited speed. For displays that do not show decimal numbers, the value of 9 km/h will be displayed.

To deactivate the tuning kit, press the LIGHT button or ↑↓↑↓ again. The value of 2.5 km/h (1.6 mph) will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the chip. For displays that do not show decimal numbers, the value of 2 km/h will be displayed.

A new feature in this SpeedBox version is the possibility of activating the double-click function in the app. By activating this function, the lights become independent of tuning. By double-clicking on the LIGHT button, the lights will flash, and the tuning will turn on. If you double-click on the button again, the tuning will turn off and the e-bike will work the same as without a chip.

SpeedBox was also designed for e-bikes that do not have a classic control unit. In this case you can just use the combination of ↑↓↑↓ buttons and SpeedBox will be activated. You can easily deactivate SpeedBox in the same way.

You can set the maximum speed of an electric assistance by changing modes three levels down and then three levels up. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched (always rounded up by 5 km/h) by pressing LIGHT button shortly or by turning the rear wheel 360°. The last displayed limit will be saved after 5 seconds of inactivity.

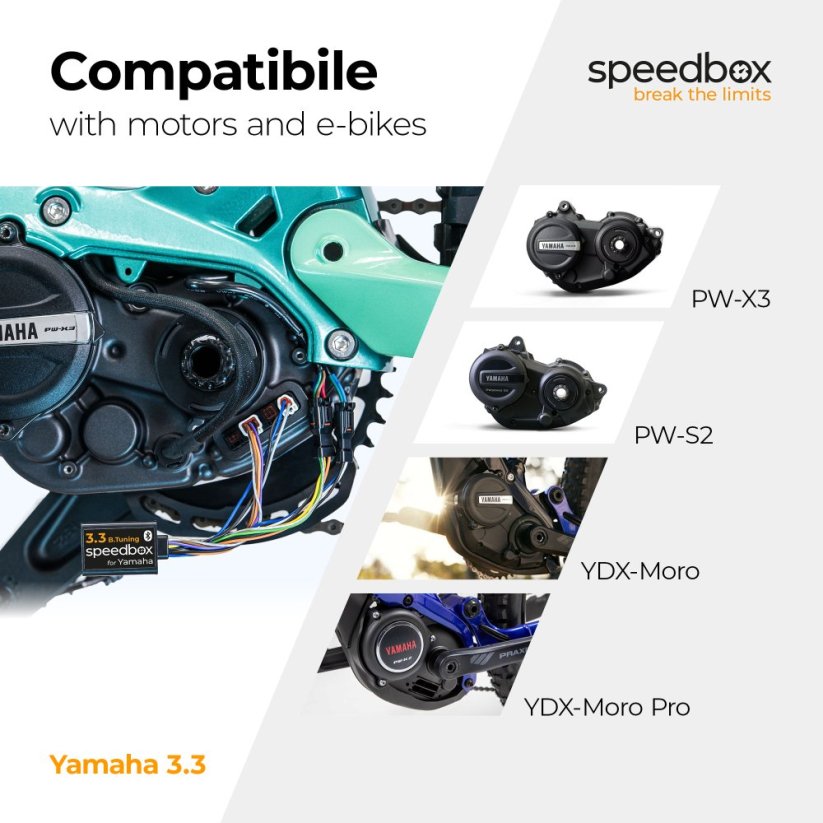

Compatible with: SpeedBox App
Compatible with motors:
PW-X3
PW-S2
Now compatible with e-bikes:
Yamaha YDX-Moro 05
Yamaha Moro 07
Not compatible with e-bikes and motors:
Yamaha UrbanRush
CrossCore
CrossConnect
Wabash
YDX-Torc

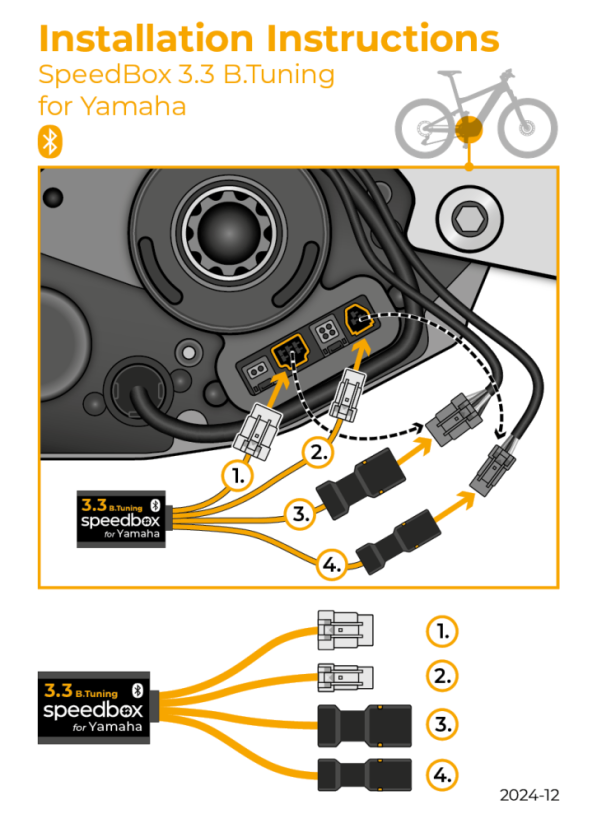

When connecting Tuning Kit to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions and videos to make installation easy for you. Disassembly of our tuning kit is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us. If you are planning to install Speedbox on a brand-new bike, make sure you ride it for at least 0.6 miles (1 km) before the tuning kit is activated.


Installation Guide:

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one’s own risk. The use of SpeedBox may void the warranty of your ebike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

SpeedBox products are thoroughly tested and we stand by their quality. SpeedBox provides lifetime warranty to all their Products!

Warranty does not cover damage resulting from eBike software updates. Remove the tuning kit before updating the software. Check with us first to ensure the kit is compatible with your updated eBike. We cannot guarantee that the kit will function the same after updates. Please exercise caution. If your Speedbox tuning kit needs updating due to updated eBike software, please contact us at hi@twowheelsempire.com. Preliminary costs are 49£ + shipping costs.

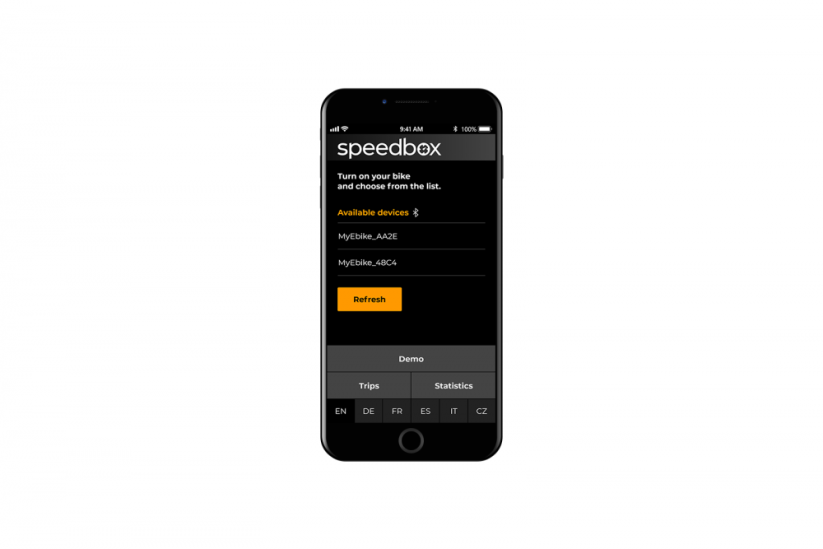

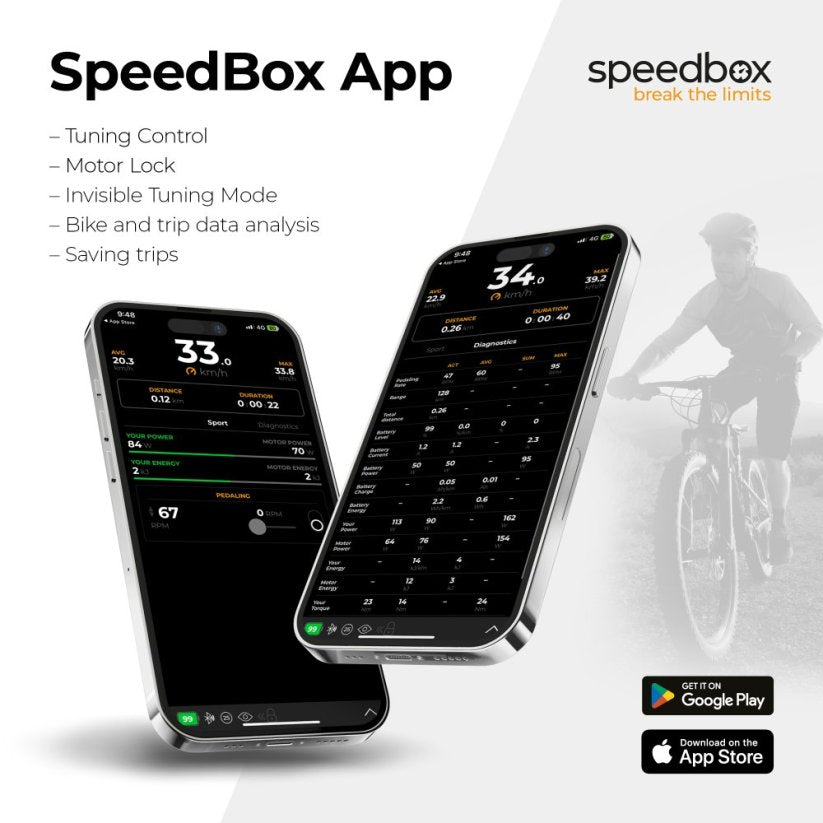

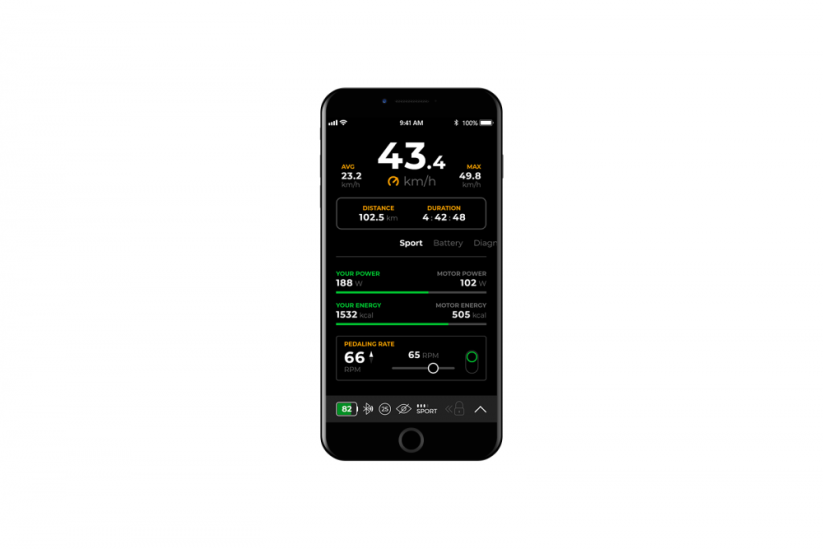

SpeedBox App specifically designed for SpeedBox B.Tuning uses Bluetooth technology to connect your e-bike to your mobile phone. After downloading the application and connecting your phone to your electric bike, you can track the current data and riding parameters on your phone. You can save your trips, compare them with friends and monitor your own performance, so just enjoy the ride to the fullest and leave checking the parameters for later!

Main Features

  • Tuning control
  • Speed limit settings
  • Saving and viewing your trips
  • Invisible tuning
  • Motor diagnostics

SpeedBox B.Tuning chip can be used even without the SpeedBox App. However, it is a great accessory that will give you a complete overview of your performance.

Most sport apps use only rough estimates of values. That’s why these data may differ from the real electric bike data by up to 20%. SpeedBox App displays completely accurate data, which is read directly from the electric bike's control unit.

Download now on:

Manufacturer Information:

Ebike Electronic s.r.o.
Rybna 716/24
Praha
1110 00
Czech Republic
j.voldan@speedbox-tuning.com
+420 702 042 874
Life Time warranty by Manufacturer
