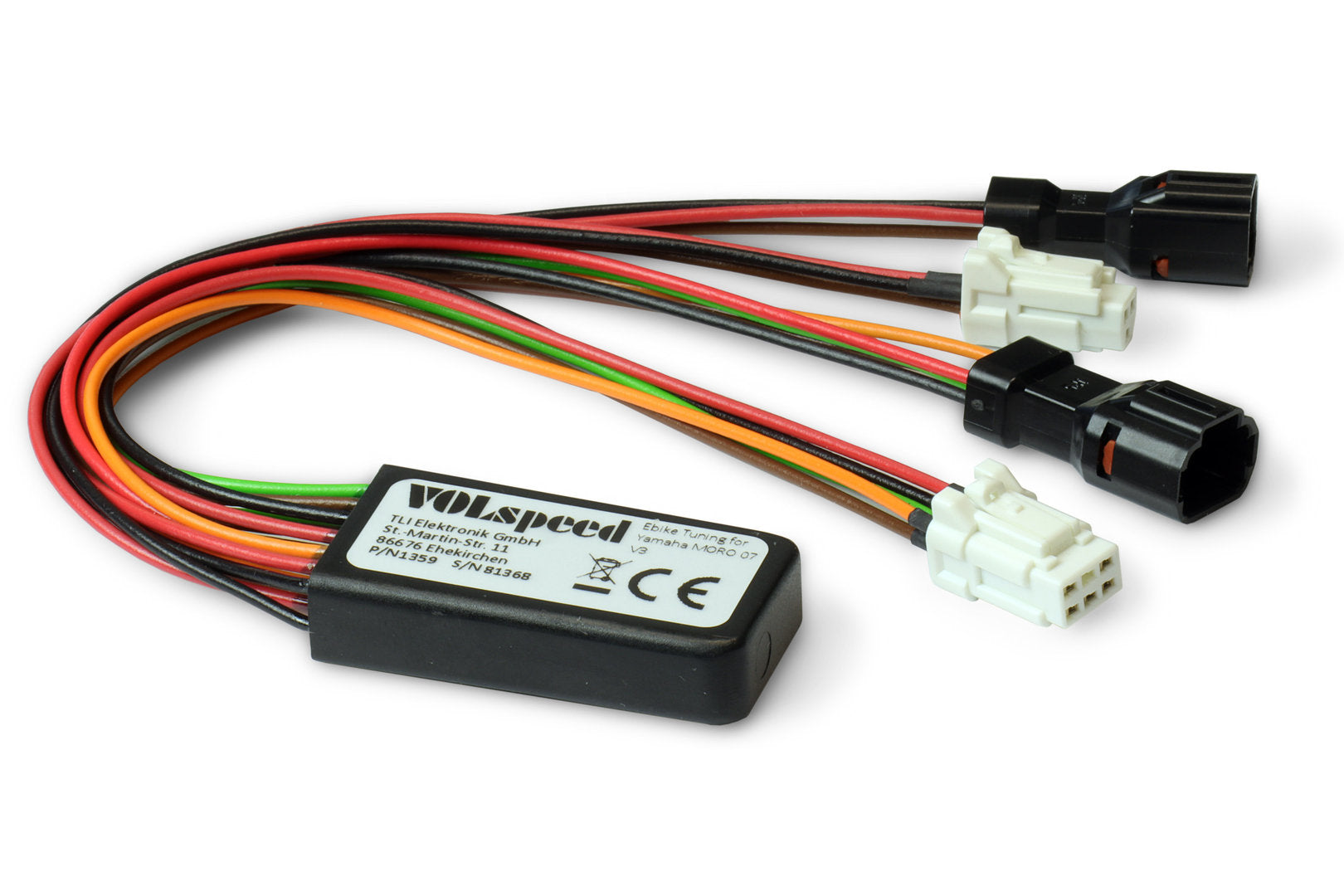

VOLspeed V3 - Yamaha MORO 07

A smart Tuning Kit Volspeed V3 with an option to set a speed limit of an e-bike of your own choice. After the chip is installed, your e-bike’s display will show real data, such as maximum and average speeds, daily mileage and cruising range. In contrast to the almost complete elimination of the speed limit with other tuning modules, this module still allows a very sporty riding style with moderate battery consumption by slightly increasing the limit, e.g. to 19mph (32km/h).

For a more natural riding experience, the dynamic mode spreads the downshift over a wider speed range, the so-called "wall effect" is significantly reduced.

The tuning kit manipulates the speed signal without altering the motor's power relative to pedaling speed. This guarantees a smooth motor control without speed limit interruptions. Depending on a tuning kit, some determine when assistance stops, while others remove the restriction entirely for continuous support. However, the achievable speed mostly depends on the eBike model. Achievable speed can be calculated using a simple formula:

Speed = Cadence [rpm] * Wheel circumference [mm] * Front Chainring Teeth / Rear Chainring Teeth * 60 [min/h] / 1.000.000 [mm/km]

The tuning kit can be activated directly on your bike’s display. After pressing the arrow keys '↓↑↓↑' starting from the support level 'High - STD - Hight - STD - Hight'. After Tuning kit activation speed limit is displayed for 5 seconds. If you would like to change maximum speed, just press arrows button 'Up' or 'Down' keys. Possible values: 16... 28mph (25... 45 km/h). Default value: 20mph (32 km/h). The set value is saved. The value will be saved if you will not press any button for 5 seconds.

To deactivate the tuning kit, press the '↓↑↓↑ ' buttons again.

The tuning is always switched off after switching on the bike.

It is possible to set a "softer curtailment behavior" (dynamic mode). This significantly softens the otherwise very abrupt deceleration at the speed limit. Correct display of the speed, the distance covered and the average speed at all times.

Tuning kit is compatible with only Yamaha MORO 07 motors

The tuning module only works with e-bikes that have an electric motor support of up to 16mph (25km/h) ex works. Children's e-bikes with a support up to 12mph (20km/h) and Speed-e-bikes with a support up to 28mph (45km/h) are not supported.

The tuning is NOT compatible with the following motors:
- Yamaha PW,PW-X, PW-X2, PX-X3, PW-SE, PW-ST, PW-TE, PW-CE motors
- all Giant Syncdrive motors

When connecting Tuning Kit to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions and videos to make installation easy for you. Disassembly of our tuning kit is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us. If you are planning to install Volspeed on a brand-new bike, make sure you ride it for at least 0.6 miles (1 km) before the tuning kit is activated.

Installation Guide:

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use VOLspeed products. Electric bikes equipped with VOLspeed products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with VOLspeed products can be used exclusively on private property and entirely at one’s own risk. The use of VOLspeed may void the warranty of your ebike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

VOLspeed Products are thoroughly tested and we stand by their quality. VOLspeed provide 2 years warranty to all their Products!

Warranty does not cover damage resulting from eBike software updates. Remove the tuning kit before updating the software. Check with us first to ensure the kit is compatible with your updated eBike. We cannot guarantee that the kit will function the same after updates. Please exercise caution.
