E-BIKE E-MTB TUNING KIT PearTune MSO for Shimano STEPS E8000 with Di2
E-BIKE E-MTB TUNING KIT PearTune MSO for Shimano STEPS E8000 with Di2
E-BIKE E-MTB TUNING KIT PearTune MSO for Shimano STEPS E8000 with Di2
PearTune

E-BIKE E-MTB TUNING KIT PearTune MSO for Shimano STEPS E8000 with Di2

Regular price £151.00 Save £-151.00
-1 in stock
PearTune Tuning Kit is compatible with Shimano STEPS E8000 Motor with Di2 (Electric Gear Switching system).

Product Features

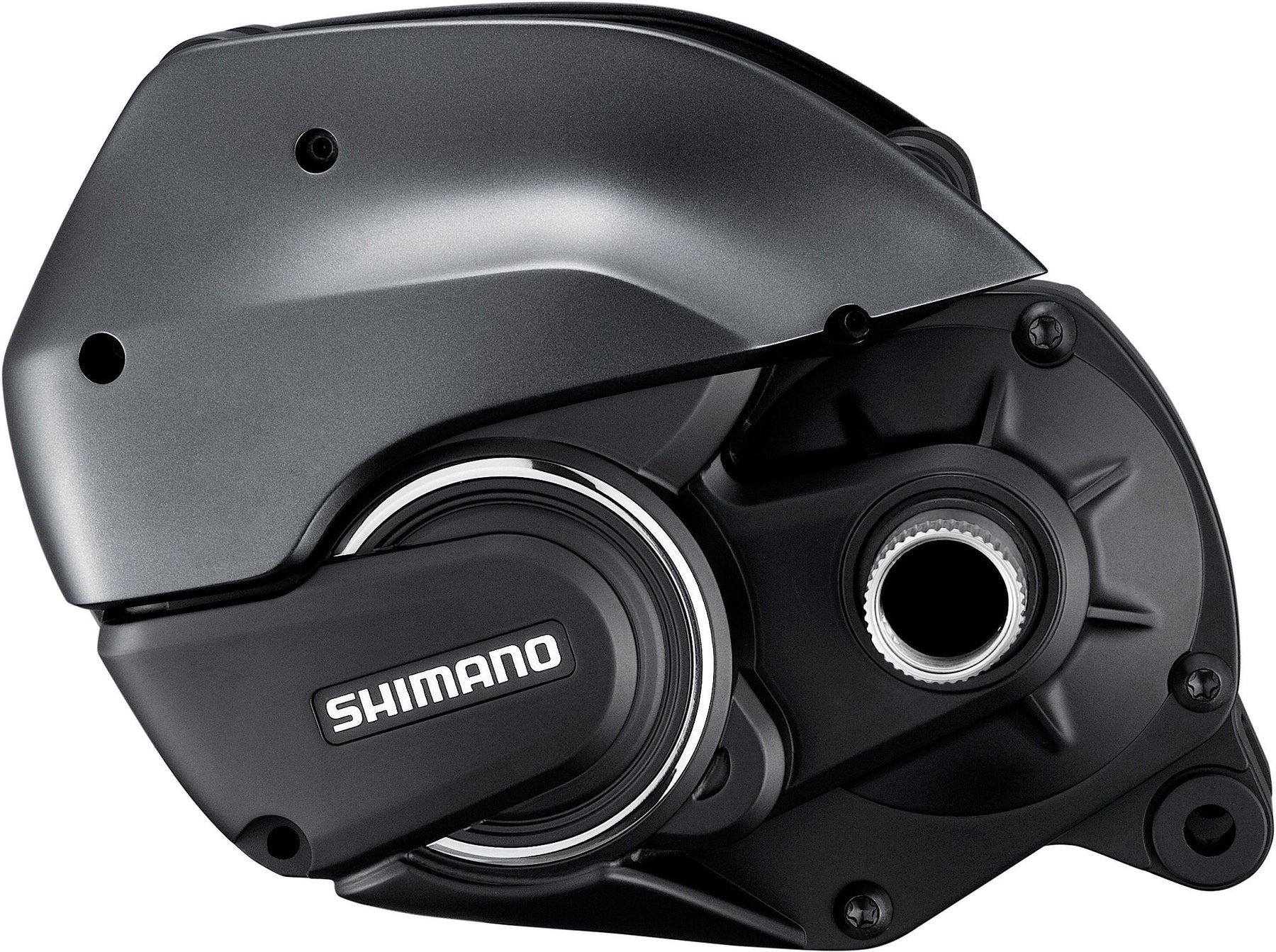

The PearTune Shimano E8000 Di2 is compatible with Shimano STEPS E Bikes with E8000, E7000, E6100, E5000 mid-mounted motor with Di2 gearshift.

This tuning kit shifts the maximum motor support from 16 mph to 31 mph (25 kph to 50 kph).

After the chip is installed Speed Limit will be fully removed! When the tuning kit is active, the speed is correctly displayed up to 14 mph (22 kph). When speeds over 14 mph (22 kph) are achieved the speed indicator constantly shows 14 mph (22 kph)

Activation - by pressing the light button. It can be activated and deactivated any time you want.

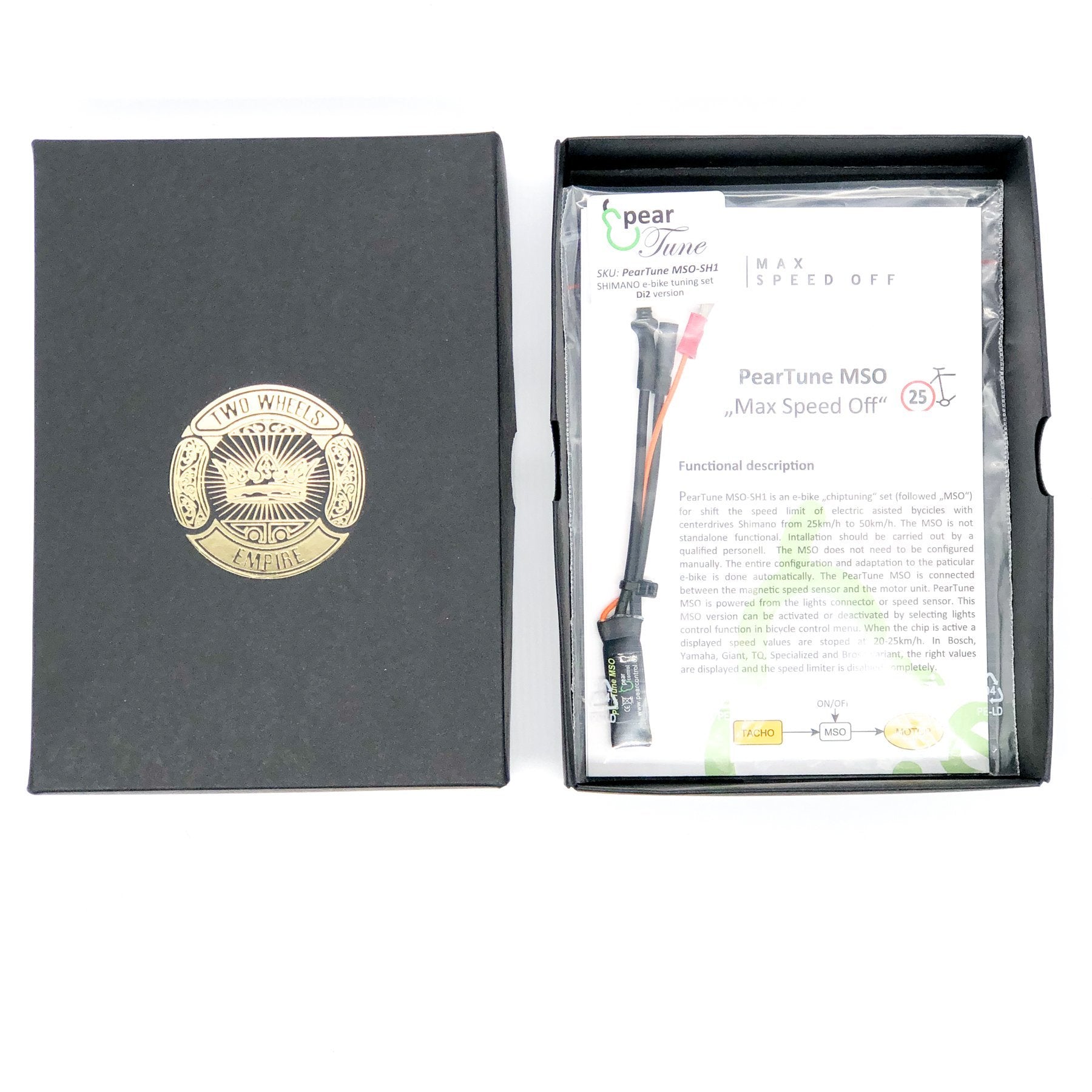

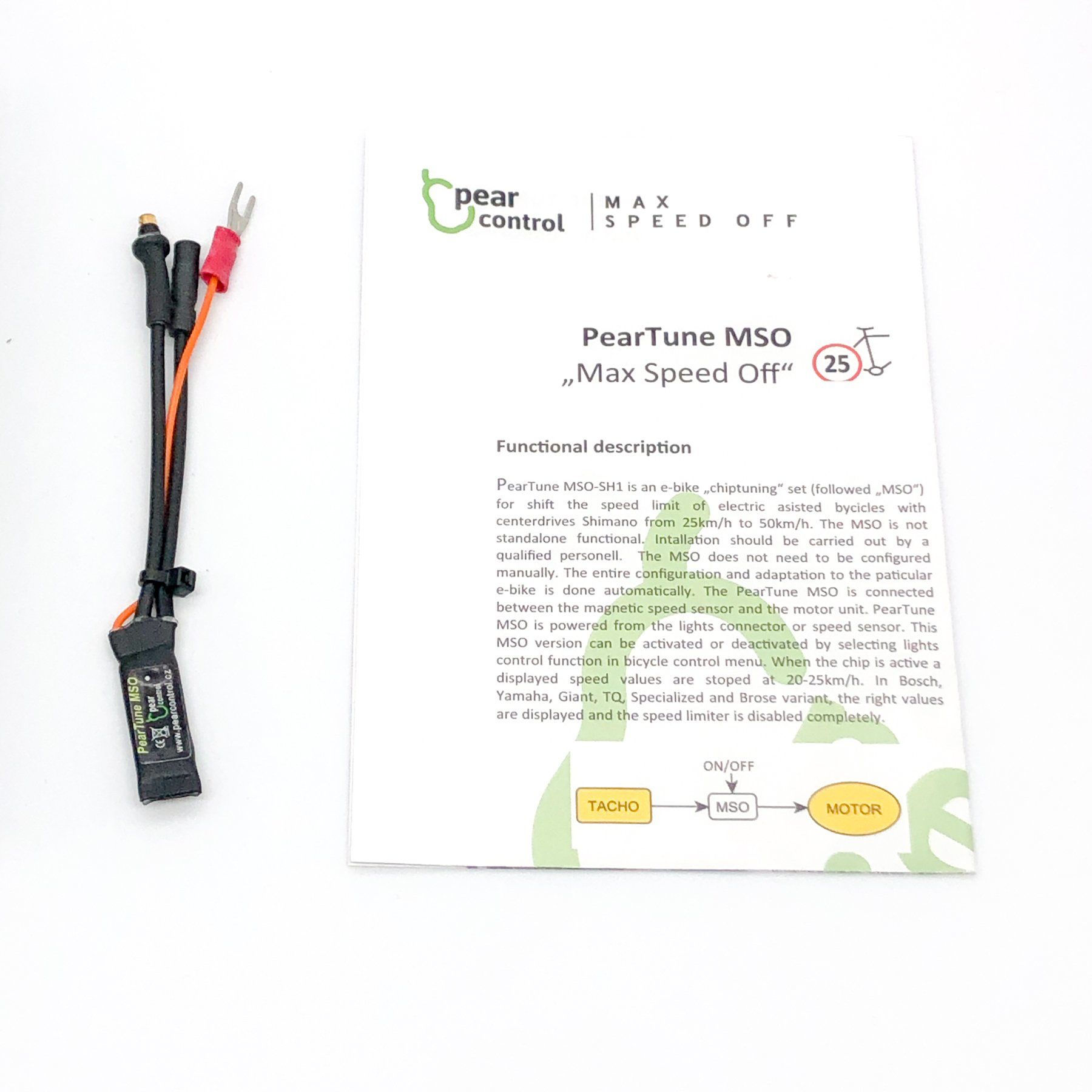

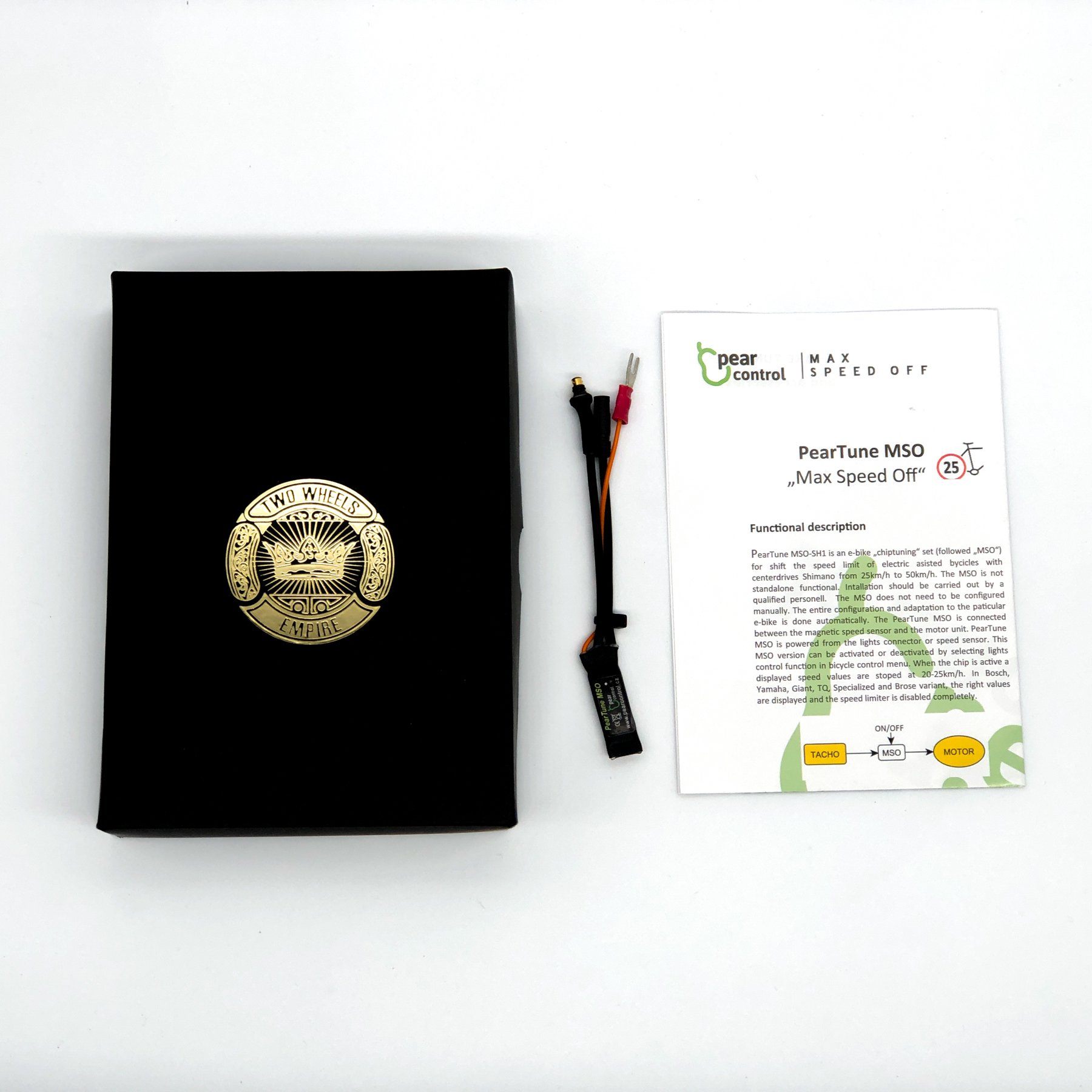

The PearTune Shimano E8000 Di2 Tuning Kit come complete with an instruction manual.
If you have any questions regarding the setup please do not hesitate in contacting us, we are happy to help.

The power supply of the PearTune Tuning kit is provided by the light connection of the e-bike.

Which PearTune Tuning Kit do I need?

This tuning kit is compatible with all eBikes; eMTB and etc. with Shimano STEPS E8000, E7000, E6100, E5000 Motors with Di2.

Compatible with latest firmware, 4.7.0 and newer!

For the the Ebike without Di2 we do suggest SpeedBox Shimano E8000.
Press a link.

For the Shimano E6000 we do suggest SpeedBox Shimano E6000.
Press the link.

Assembly

Assembly is easy, you just need to remove the cover from the motor and connect Tuning kit by the original connectors. You will need a basic toolkit, some bikes may require a crank puller.

When you will receive a Tuning kit, you will find a full manual how to install it. If you will need any further assistance, do not hesitate to contact us.


Legal

Please note the usage of modified eBikes on public roads may be against the law in some countries, PearTune products are only to be used on private property. Using the PearTune tuning kit may result in the loss of warranty for your eBike.

PearTune Products are thoroughly tested and we stand by their quality.

If You have any question, please do not hesitate to contact us.
Thank you for looking!
Two Wheels Empire Team

PT-MSO-SH1

  Unscrew three screws marked by red ring and remove the plastic cover of the centerdrive. All necessarry cables and connectors are placed under this cover. Covers are provided in various shapes and colours and the cover may differ from the picture.

Disconnect the connector between the motor unit and tacho sensor (marked by green arrow in the picture). Release the screw of positive (+) light clamp (marked by red arrow in the picture).

③ Connect the speed sensor to the MSO unit and the MSO unit to the motor unit using corresponding connectors. Connect red power cable to positive light clamp. Tighten the screw of the clamp.

Place the MSO in a proper position and optionally, fasten the wiring using the electrical ties. Re-attach the plastic cover and the bike is ready to go.

Technical parameters

Dimension without wiring: 21 x 40 x 12mm

Supply voltage range: 5 - 15 V

Maximum current consumption: 100 mA

Maximum power usage: 1.5W

Mass: cca 30g

The voltage is lower then 20 V in all device and on I/O pins too
