TORP TC500 Controller Kit For Surron Light Bee
If Pre-ordered, orders will be dispatched 1-3 weeks after ordering. Please contact us for more precise information.
The only aftermarket controller pre-configured for the SurRon Light Bee/Segway X260 e-bikes. Quick and easy installation and intuitive setup through the mobile App.
EXPECTED POWER:
Stock controller + Stock Battery - 4,8 kW
TC500 + Stock Battery (32 Ah / 34 Ah / 40 Ah) - 7 kW
TC500 + Stock 38 Ah Battery - 8,5 kW
TC500 + Custom 60 V Battery** - 13,5 kW
TC500 + Custom 72 V Battery - 17 kW
*There is no need to bypass the battery with the TC500, but in case you use the bypassed battery, the TC500 controller will work with it as well.
**Depending on the voltage sag.

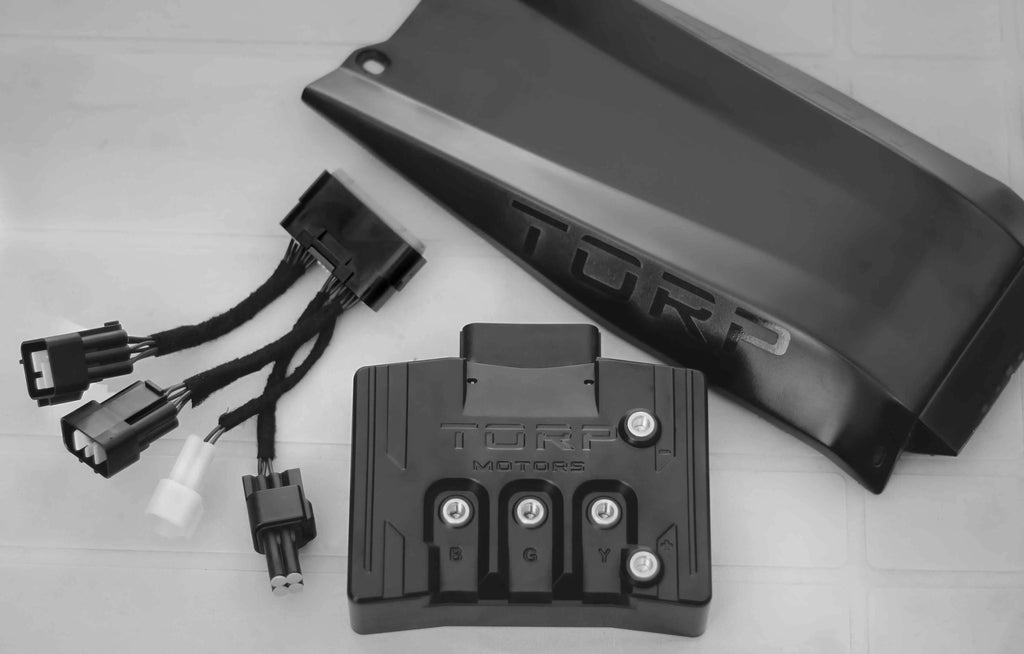

WHAT'S IN THE BOX:
-1x TC500 Controller
-1x wire harness
-1x plastic shield
-screws and tolls needed for installation
-4x stickers
-short instructions
SPECIFICATIONS:
-Field-oriented control (FOC)
-Voltage 20-90V
-Max Power: 25kW*
-Sensored (HALL Encoder) and sensorless control
-Max Battery Current: 400 A*
*In combination with the stock SurRon e-motor, the max power is 17 kW.
-Max phase current: 500 A
-Efficiency up to 99%
-Working temperature: from -15 to 75 C°
-Bluetooth communication
-Pre-calibrated: No additional steps required
-Overcurrent, overvoltage, undervoltage and overtemperature protection
-Communication with stock BMS
-Different regenerative braking and throttle modes
-Weight: 1kg
-Features: Mobile App (IOS & Android), stock SurRon display
-Protection class: IP67
-Regular firmware updates
